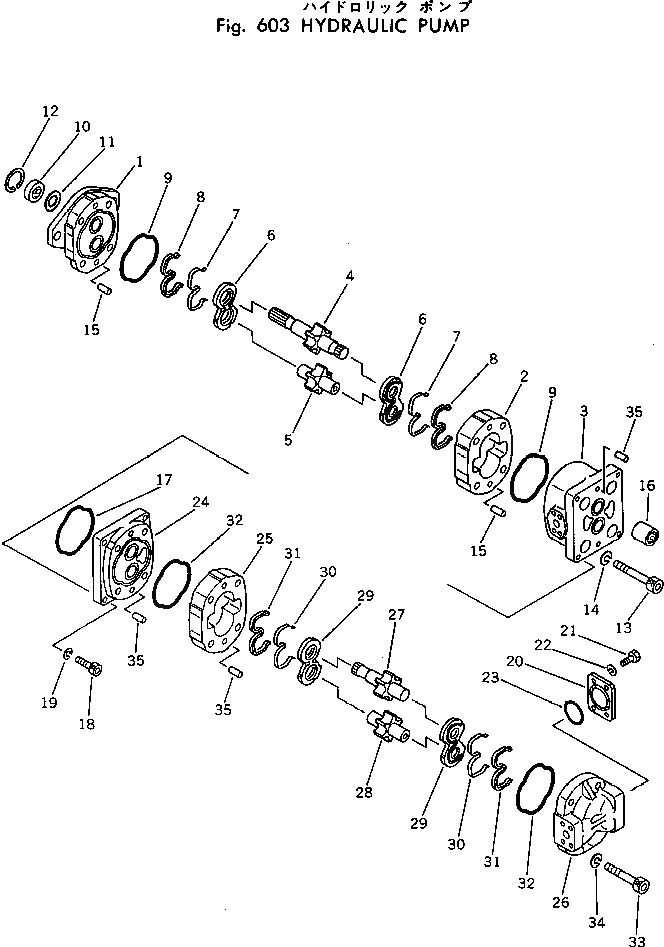

Запчасти Komatsu PC80-1 ГИДР. НАСОС. ГИДРАВЛИКА

|$0

705-54-20000

PUMP ASS'Y,(SAR2-25+25)

|$1

705-14-28210

PUMP ASS'Y,(SAR25)

1

705-17-02022

BRACKET

2

705-18-28010

CASE,GEAR

3

705-17-02221

CARRIER

4

705-18-28430

GEAR,DRIVE

5

705-18-28511

GEAR,DRIVEN

6

705-17-02612

PLATE,SIDE

7

705-17-02440

RING,BACK-UP

8

705-17-02472

RING,SEAL

9

705-17-02381

O-RING

10

705-17-02810

SEAL,OIL

11

705-17-02870

PLATE

12

04065-04018

RING,SNAP

13

705-17-02750

BOLT

14

01602-01236

WASHER,SPRING

15

04020-01024

PIN,DOWEL

16

705-17-02310

COUPLING

17

705-17-02381

O-RING

18

705-17-02374

BOLT

19

01602-01030

WASHER,SPRING

20

705-17-02880

PLATE

21

01010-31025

BOLT

22

01602-01030

WASHER,SPRING

23

07000-03042

O-RING

|$25

705-14-28530

PUMP ASS'Y,(SAR25)

24

705-17-02521

BRACKET

25

705-18-28010

CASE,GEAR

26

705-17-02122

COVER ASS'Y

27

705-18-28450

GEAR,DRIVE

28

705-18-28511

GEAR,DRIVEN

29

705-17-02612

PLATE,SIDE

30

705-17-02440

RING,BACK-UP

31

705-17-02472

RING,SEAL

32

705-17-02381

O-RING

33

705-17-02730

BOLT

34

01602-01236

WASHER,SPRING

35

04020-01024

PIN,DOWEL
