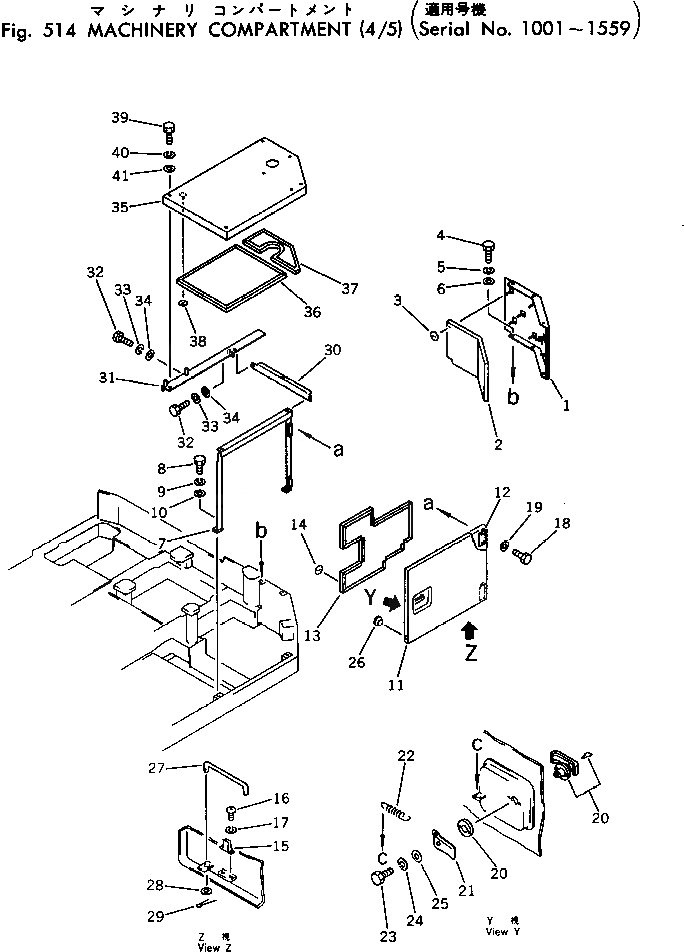

Запчасти Komatsu PC80-1 MACHINERY ОБСТАНОВКА (/)(№-9) ОСНОВНАЯ РАМА И КАБИНА

|$0

20X-54-11302

COVER ASS'Y

|$$2

(20X-54-11303,20X-54-11603)

1

COVER

2

20X-54-11332

SHEET

3

04431-30000

PLATE

4

01010-31025

BOLT

5

01602-01030

WASHER,SPRING

6

01643-31032

WASHER

7

20X-54-11632

BRACKET

8

01010-31030

BOLT

9

01602-01030

WASHER,SPRING

10

01643-31032

WASHER

|$12

20X-54-11403

COVER ASS'Y

|$13

20X-54-11402

COVER ASS'Y

11

COVER

12

203-54-32230

HINGE

13

20X-54-11422

SHEET

14

04431-30000

PLATE

15

201-54-21380

SPRING

16

01220-40406

SCREW

17

01601-20410

WASHER,SPRING

18

01010-31025

BOLT

19

01643-31032

WASHER

20

21T-54-12310

HANDLE,LOCK

21

21T-54-12320

PLATE

22

135-43-14520

SPRING

23

01010-30820

BOLT

24

01602-00825

WASHER,SPRING

25

01643-30823

WASHER

26

203-54-32260

STOPPER

27

203-54-32250

BAR

28

01641-21016

WASHER

29

04050-13018

PIN,COTTER

30

20X-54-11461

BRACKET

31

20X-54-11471

BRACKET

32

01010-31025

BOLT

33

01602-01030

WASHER,SPRING

34

01643-31032

WASHER

|$38

20X-54-11602

COVER ASS'Y

|$$40

(20X-54-11603,20X-54-11303)

35

COVER

36

20X-54-11620

SHEET

37

20X-54-11322

SHEET

38

04431-30000

PLATE

39

01010-31025

BOLT

40

01602-01030

WASHER,SPRING

41

01643-31032

WASHER
