Запчасти Komatsu PC80-1 MACHINERY ОБСТАНОВКА (/)(№-) ОСНОВНАЯ РАМА И КАБИНА

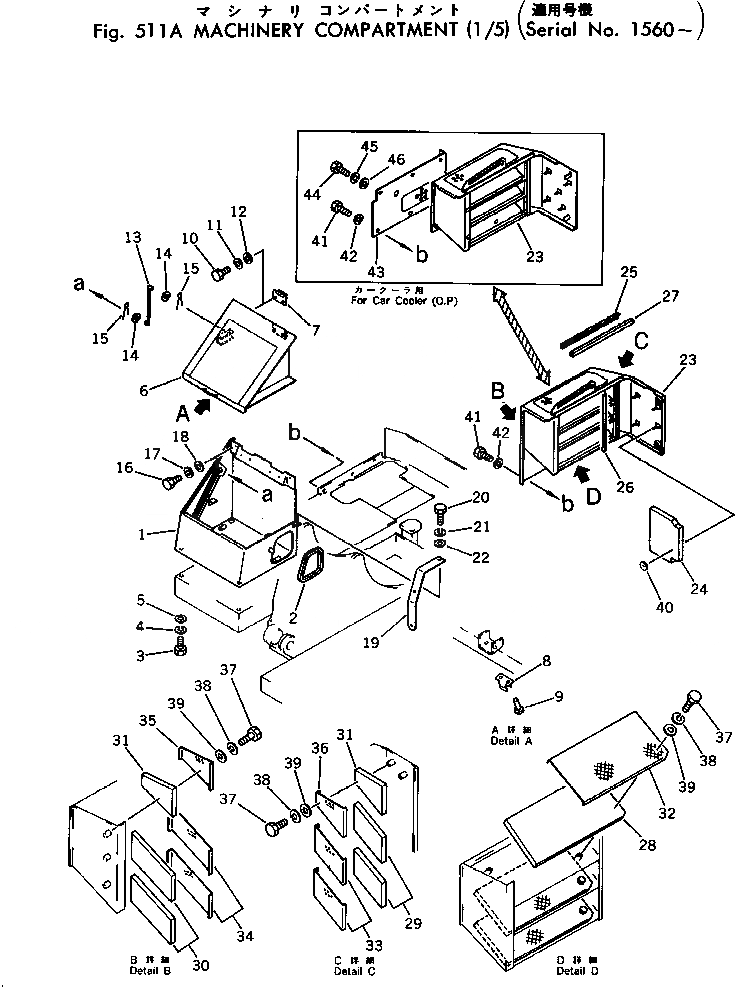

Схема запчастей Komatsu PC80-1 - MACHINERY ОБСТАНОВКА (/)(№-) ОСНОВНАЯ РАМА И КАБИНА

Артикул

Название

Примечание

Количество

1

20X-54-11112

BOX

2

20X-54-11142

SEAL

3

01010-31025

BOLT

4

01602-01030

WASHER,SPRING

5

01643-21032

WASHER

6

20X-54-11122

COVER

7

201-54-21270

HINGE

8

201-54-21380

SPRING

9

04400-00410

RIVET

10

01010-31020

BOLT

11

01602-01030

WASHER,SPRING

12

01643-31032

WASHER

13

20X-54-11132

ROD

14

01643-31232

WASHER

15

04050-13018

PIN,COTTER

16

01010-31020

BOLT

17

01602-01030

WASHER,SPRING

18

01643-31032

WASHER

19

20X-54-11171

COVER

20

01010-31025

BOLT

21

01602-01030

WASHER,SPRING

22

01643-31032

WASHER

|$22

20X-54-11804

COVER ASS'Y

|$23

20X-978-1201

COVER ASS'Y,(FOR CAR COOLER)

23

20X-54-11814

COVER

23

20X-978-1211

COVER,(FOR CAR COOLER)

24

20X-54-12322

SHEET

25

201-54-21370

SEAL

26

201-54-21131

SEAL

27

20X-54-11480

SEAL

28

20X-54-11822

SHEET

29

20X-54-11843

SHEET

30

20X-54-11863

SHEET

31

20X-54-11882

SHEET

32

20X-54-11832

COVER

33

20X-54-11852

COVER

34

20X-54-11872

COVER

35

20X-54-11791

COVER

36

20X-54-11891

COVER

37

01010-30820

BOLT

38

01602-00825

WASHER,SPRING

39

01643-30823

WASHER

40

04431-30000

PLATE

41

01010-31025

BOLT

42

01643-31032

WASHER

43

20X-978-1240

COVER,(FOR CAR COOLER)

44

01010-51025

BOLT,(FOR CAR COOLER)

45

01602-21030

WASHER,SPRING (FOR CAR COOLER)

46

01643-31032

WASHER,(FOR CAR COOLER)

Выбрано товаров: 49
