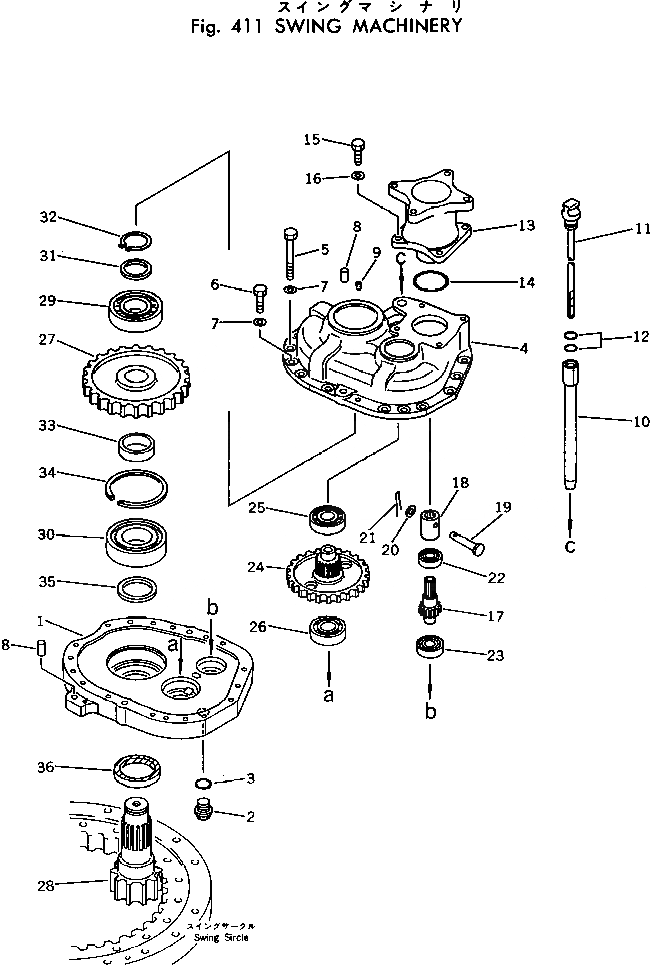

Запчасти Komatsu PC80-1 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. СИСТЕМА

1

20X-26-11110

CASE,LOWER

2

07044-12412

PLUG

3

07002-02434

O-RING

4

20X-26-11120

CASE,UPPER

5

01010-31290

BOLT

6

01010-31235

BOLT

7

01643-31232

WASHER

8

04020-01842

PIN,DOWEL

9

07049-01215

PLUG

10

20X-26-11211

FILLER

11

20X-26-11191

GAUGE,OIL LEVEL

12

07000-03022

O-RING

13

201-26-21130

CAGE

14

07000-02075

O-RING

15

01010-31230

BOLT

16

01643-31232

WASHER

17

20X-26-11130

SHAFT

18

20T-26-11210

COUPLING

19

20T-26-11220

PIN

20

01643-30623

WASHER

21

04050-11610

PIN,COTTER

22

06044-00205

BEARING

23

06040-06305

BEARING,BALL

24

20X-26-11140

GEAR

25

06044-00307

BEARING,ROLLER

26

06040-06307

BEARING,BALL

27

20X-26-11150

GEAR

28

20X-26-11160

SHAFT

29

06044-00311

BEARING,ROLLER

30

06030-21313

BEARING,ROLLER

31

201-26-11430

COLLAR

32

04064-05520

RING,SNAP

33

20X-26-11170

COLLAR

34

04071-00140

RING,SNAP

35

20X-26-11180

SPACER

36

07012-00080

SEAL,OIL
