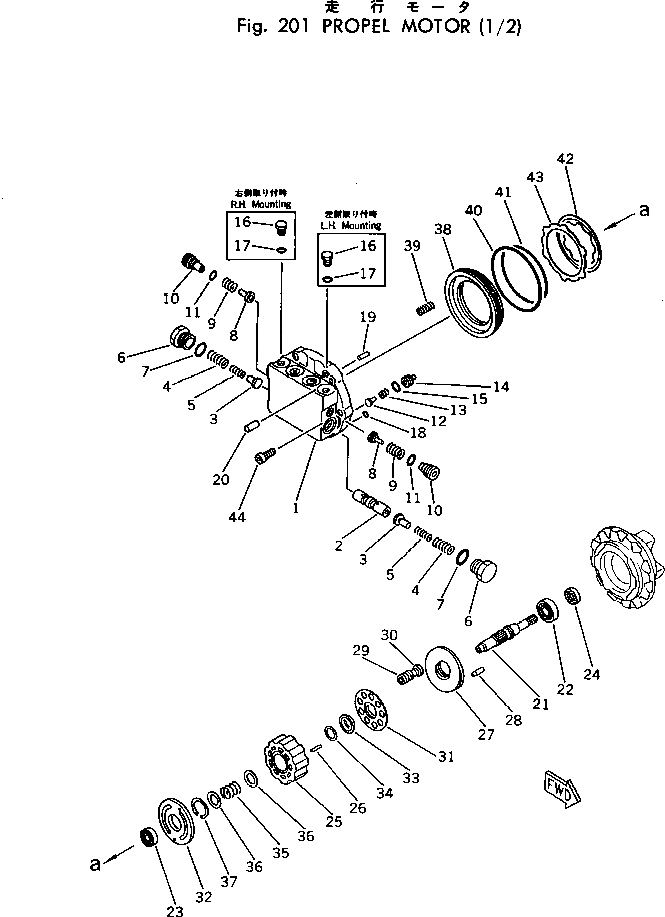

Запчасти Komatsu PC80-1 PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

20X-60-00100

MOTOR ASS'Y

|$$2

|$2

FLANGE ASS'Y

1

FLANGE,REAR

2

SPOOL

3

STOPPER

4

SPRING

5

SPRING

6

PLUG

7

07000-13032

O-RING

8

VALVE

9

SPRING

10

PLUG

11

07000-12020

O-RING

12

VALVE

13

SPRING

14

SEAT,VALVE

15

O-RING

16

PLUG

17

07000-12034

O-RING

18

O-RING

19

PIN,DOWEL

20

PIN,DOWEL

21

SHAFT

22

BEARING,BALL

23

BEARING,BALL

24

SEAL,OIL

25

BLOCK,CYLINDER

26

PIN,DOWEL

27

PLATE,SWASH

28

PIN

29

SHOE ASS'Y

30

SHOE,PISTON

31

PLATE,RETAINER

32

PLATE,TIMING

33

BALL,THRUST

34

WASHER KIT

35

SPRING

36

WASHER

37

RING,SNAP

38

PISTON

39

SPRING

40

O-RING

41

O-RING

42

DISC

43

PLATE

44

BOLT
