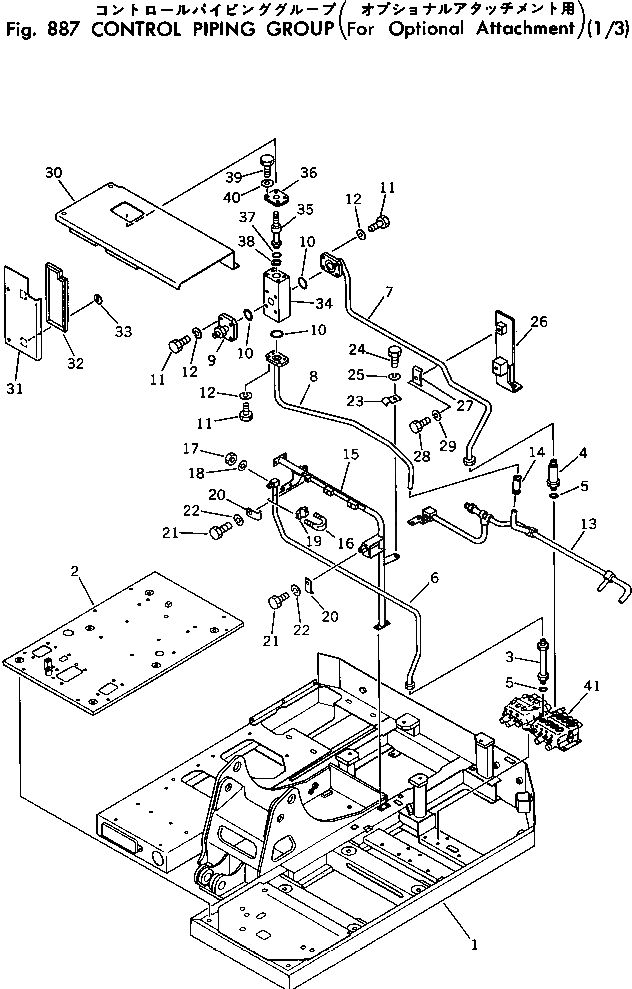

Запчасти Komatsu PC80-1 УПРАВЛ-Е ТРУБЫ ГРУППА (ДЛЯ ОПЦ.AL НАВЕСН. ОБОРУД) (/) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20X-973-1110

FRAME ASS'Y

2

20X-973-1120

FRAME,FLOOR

3

20X-62-11760

TUBE

4

20X-62-12490

NIPPLE

5

07002-12034

O-RING

6

20X-973-1310

TUBE

7

20X-973-1320

TUBE

8

20X-973-1330

TUBE

9

20X-973-1340

TUBE

10

07000-13030

O-RING

11

01010-51030

BOLT

12

01602-21030

WASHER,SPRING

13

20X-973-1370

TUBE

14

07332-00600

COUPLING ASS'Y

15

20X-973-1380

BRACKET

16

07283-22738

CLIP

17

01599-01011

NUT

18

01643-31032

WASHER

19

07283-52737

SEAT

20

201-62-21890

CLAMP

21

01010-51025

BOLT

22

01602-21030

WASHER,SPRING

23

112-62-32150

CLAMP

24

01010-51025

BOLT

25

01602-21030

WASHER,SPRING

26

20X-973-1390

BRACKET

27

201-62-21880

CLAMP

28

01010-51025

BOLT

29

01602-21030

WASHER,SPRING

30

20X-973-1420

COVER

|$30

20X-973-1440

COVER ASS'Y

31

20X-973-1450

COVER

32

20X-973-1460

SEAT

33

04431-30000

PLATE

|$34

203-973-3800

VALVE ASS'Y,3-WAY

34

203-973-3810

BODY

35

203-973-3820

SPOOL

36

20T-973-2640

PLATE

37

07000-13025

O-RING

38

07001-03025

RING,BACK-UP

39

01010-50820

BOLT

40

01643-20823

WASHER

41

700-24-46000

VALVE ASS'Y,4-SPOOL
