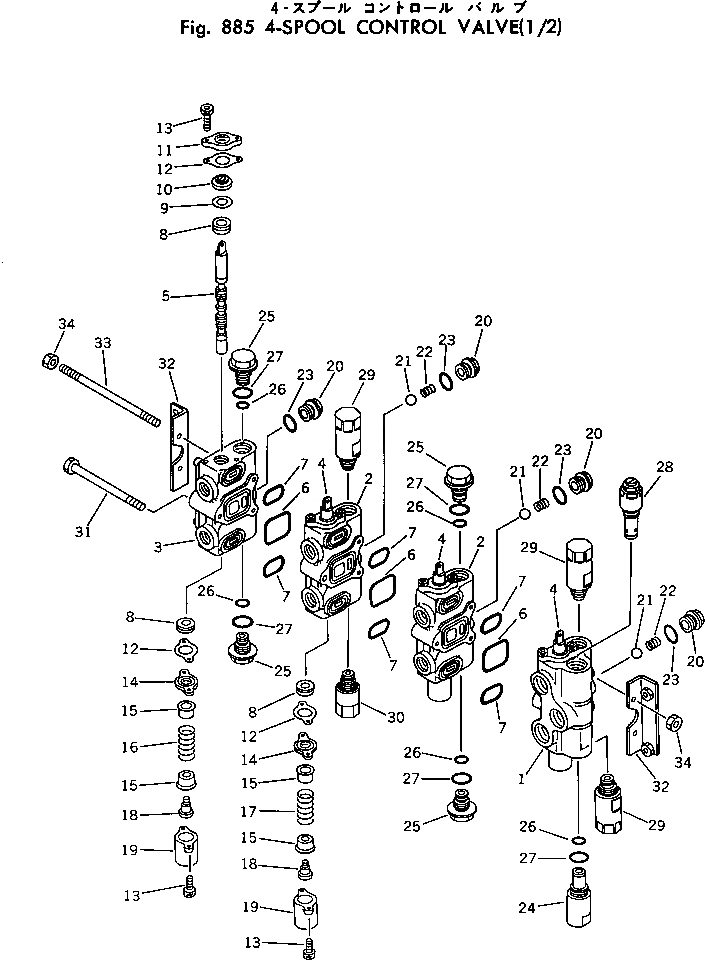

Запчасти Komatsu PC80-1 4-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

700-24-46000

VALVE ASS'Y,4-SPOOL

|$$2

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER,COVER

4

SPOOL

5

SPOOL

6

07000-13040

O-RING

7

700-22-11450

O-RING

8

700-22-11252

U-PACKING

9

700-22-11430

COLLAR

10

700-22-11261

SEAL,DUST

11

700-22-11270

PLATE

12

700-22-11420

GASKET

13

01252-30616

BOLT

14

700-22-11281

PLATE

15

700-22-11290

RETAINER

16

700-22-11311

SPRING

17

700-23-13130

SPRING

18

700-22-11320

PLUG

19

700-22-11331

COVER

20

700-22-11351

PLUG

21

700-22-12340

BALL

22

700-22-12350

SPRING

23

07002-12434

O-RING

24

700-23-13150

NIPPLE

25

700-22-11360

PLUG

26

07000-12014

O-RING

27

07002-02434

O-RING

28

700-24-56000

VALVE ASS'Y,RELIEF

29

700-20-82000

VALVE ASS'Y,SUCTION AND RELIEF

30

700-20-83000

VALVE ASS'Y,RELIEF

31

700-24-13140

BOLT

32

700-26-11170

ANGLE

33

700-24-13110

STUD

34

01580-10806

NUT
