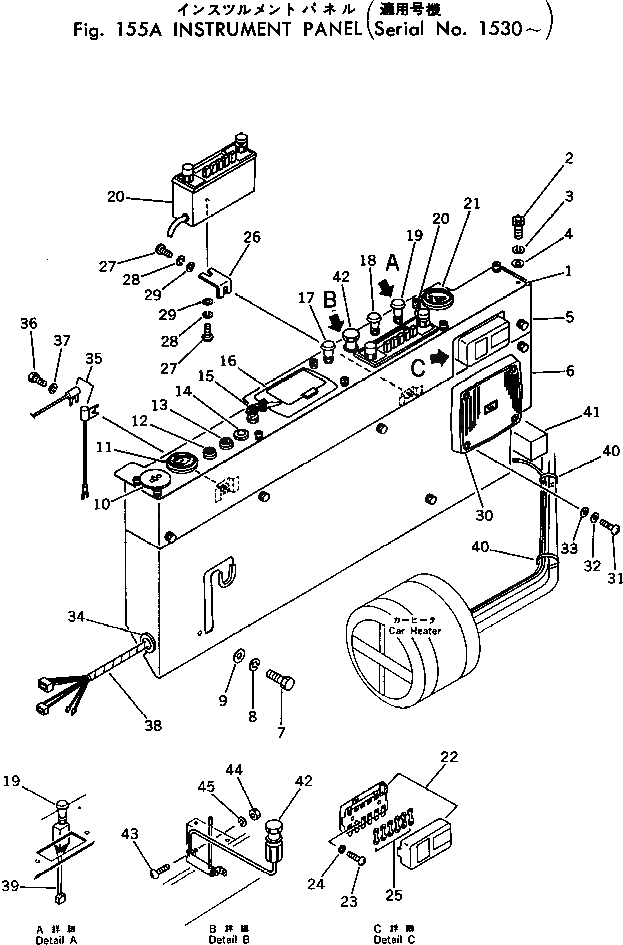

Запчасти Komatsu PC80-1 ПАНЕЛЬ ПРИБОРОВ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

203-06-32110

PANEL,INSTRUMENT

2

205-06-62170

BOLT

3

205-06-62180

WASHER,SPRING

4

205-06-62190

WASHER

5

20X-06-11121

COVER

6

20X-06-11131

COVER

7

01010-30816

BOLT

8

01602-00825

WASHER,SPRING

9

01643-30823

WASHER

10

09414-00053

CAP

11

203-06-21131

GAUGE,WATER TEMPERATURE

12

125-06-22210

LAMP,OIL PRESSURE

13

125-06-22220

LAMP,BATTERY CHARGE

14

600-815-2371

SIGNAL,HEATER

15

201-06-21510

SWITCH,STARTING

16

566-06-16411

ASHTRAY

17

08061-40010

SWITCH,LAMP

18

09481-02400

SWITCH,HEATER

19

08183-00000

SWITCH,WIPER

20

201-06-21480

RADIO,(FOR JAPAN)

20

209-06-11720

RADIO,(EXCEPT JAPAN)

21

08687-22402

METER,SERVICE

22

175-06-35430

BOX,FUSE

23

01220-40616

SCREW

24

01611-06063

WASHER

25

175-06-35420

FUSE, 10A

25

175-06-35410

FUSE, 20A

25

175-06-35390

FUSE, 30A

25

175-06-35380

FUSE, 40A

26

205-06-62280

BRACKET

27

01220-40512

SCREW

28

01601-20513

WASHER,SPRING

29

01641-20508

WASHER

30

203-06-31410

SPEAKER,(FOR JAPAN)

30

209-06-11730

SPEAKER,(EXCEPT JAPAN)

31

01220-40520

SCREW

32

01601-20513

WASHER,SPRING

33

01641-20508

WASHER

34

08037-02512

GROMMET

35

201-06-21450

CONDENSER

36

01010-30612

BOLT

37

01602-00619

WASHER,SPRING

38

203-06-31156

WIRE ASS'Y

39

20X-06-11190

WIRE ASS'Y

40

08034-00519

BAND

41

206-54-15750

SEAL

42

198-822-6150

LIGHTER,CIGARETTE

43

01220-40412

SCREW

44

01580-10403

NUT

45

01601-20410

WASHER,SPRING
