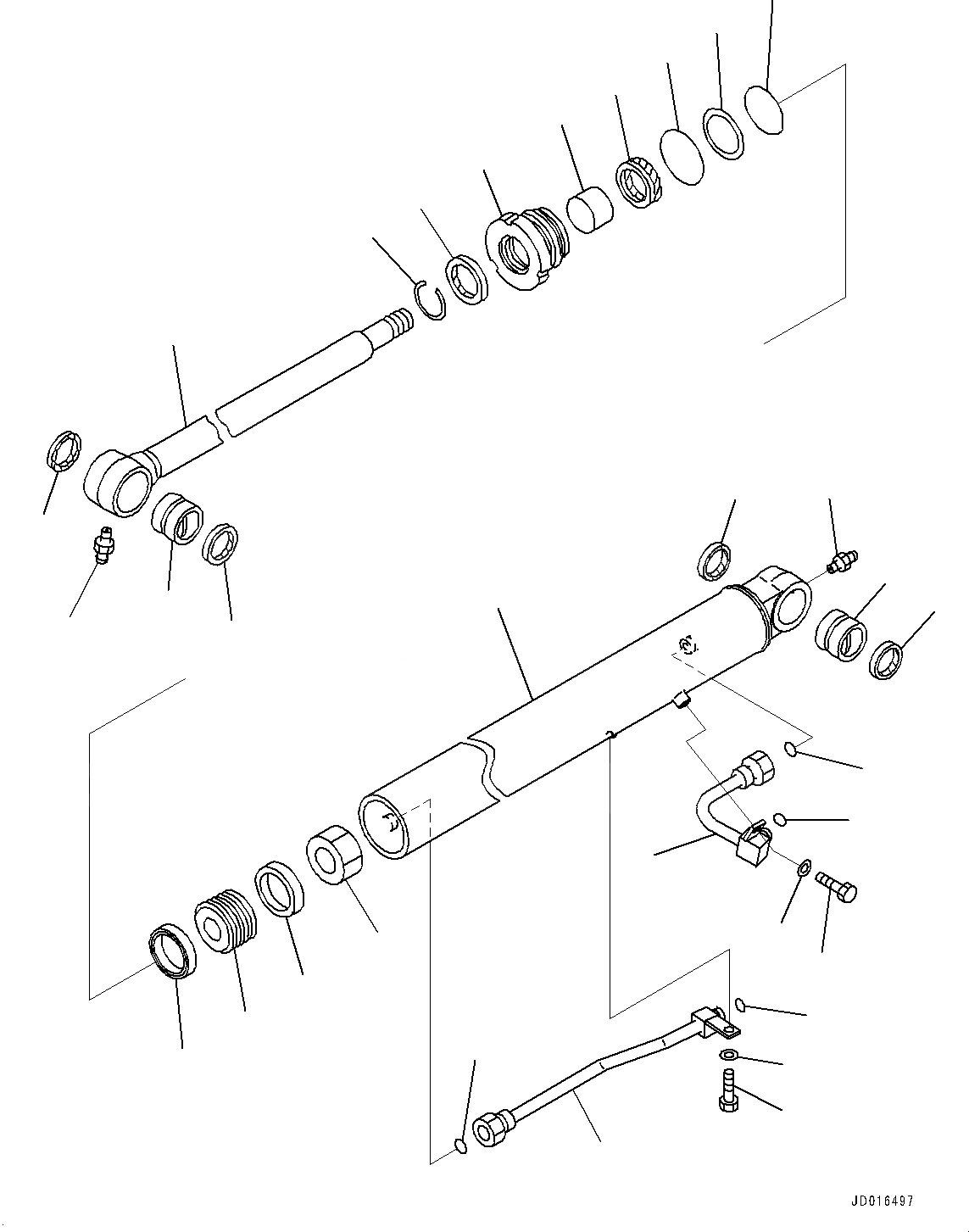

Запчасти Komatsu PC78UU-8 ЦИЛИНДР КОВША (№-) ЦИЛИНДР КОВША

|$0

707-00-0J600

Cylinder Group

1

721-11-90330

Cylinder

2

02896-11012

O-ring, (Kit : K08)

3

721-58-55180

Rod, Piston

4

21W-70-41741

Bushing

5

07145-00050

Seal, Dust, (Kit : K08)

6

07020-00000

Fitting, Grease

7

07020-00000

Fitting, Grease

8

707-76-60691

Bushing

9

21W-70-41440

Seal, Dust, (Kit : K08)

10

707-29-90310

Head, Cylinder

11

707-56-55740

Seal, Dust, (Kit : K08)

12

07179-12069

Ring, Snap

13

707-51-55211

Packing, Rod, (Kit : K08)

14

707-52-15310

Bushing

15

07000-12090

O-ring, (Kit : K08)

16

07000-12085

O-ring, (Kit : K08)

17

07146-02086

Ring, Back-up, (Kit : K08)

18

707-36-90240

Piston

19

707-44-90180

Ring, Piston, (Kit : K08)

20

07156-00912

Ring, Wear, (Kit : K08)

21

707-67-39020

Nut

22

707-86-48840

Tube

23

02896-11012

O-ring, (Kit : K08)

24

707-86-46980

Tube

25

02896-11012

O-ring, (Kit : K08)

26

01010-81020

Bolt

27

01643-31032

Washer

28

01010-81025

Bolt

29

01643-31032

Washer
