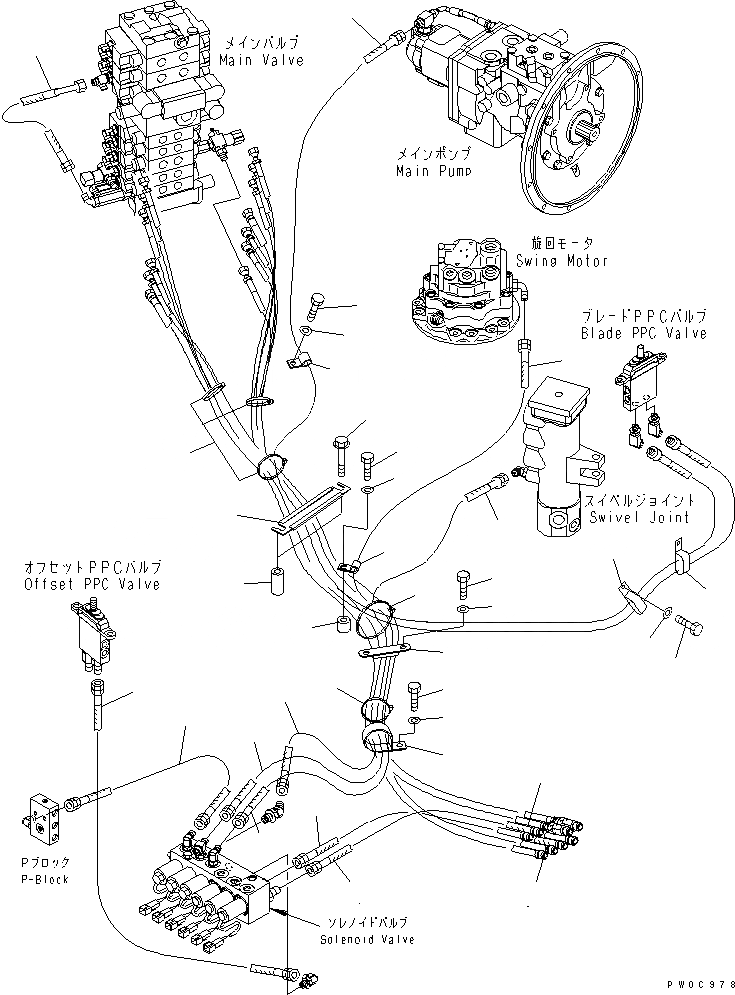

Запчасти Komatsu PC78UU-6 P.P.C ОСНОВН. ЛИНИЯ (/) (ЭКСКАВАТ.)(№-) ГИДРАВЛИКА

1

21W-62-41380

HOSE, 2030MM,RED-YELLOW

1

21U-62-34760

BAND, RED

1

21U-62-34710

BAND, YELLOW

2

21W-62-41711

HOSE, 1380MM,GREEN-RED

2

21U-62-34730

BAND, GREEN

2

21U-62-34760

BAND, RED

3

21W-62-41721

HOSE, 840MM,YELLOW-YELLOW

3

21U-62-34760

BAND, RED

3

21U-62-34760

BAND, RED

4

21W-62-41731

HOSE, 320MM,YELLOW

4

21U-62-34710

BAND, YELLOW

5

21W-62-41741

HOSE, 410MM,GREEN

5

21U-62-34730

BAND, GREEN

6

21W-62-41751

HOSE, 350MM

7

21W-62-41691

HOSE

8

21W-62-41540

HOSE

9

207-62-33690

CLIP

10

20Y-03-11220

COLLAR

11

04434-51212

CLIP

12

01010-81225

BOLT

13

01010-81225

BOLT

14

01643-31232

WASHER

15

21W-62-41990

CLAMP

16

04434-51610

CLIP

17

01010-81020

BOLT

18

01643-31032

WASHER

19

581-22-12760

SPACER

20

21W-62-42790

COVER

21

01435-01260

BOLT

22

04435-51010

CLIP

23

01010-81020

BOLT

24

01643-31032

WASHER

25

08034-00536

BAND
