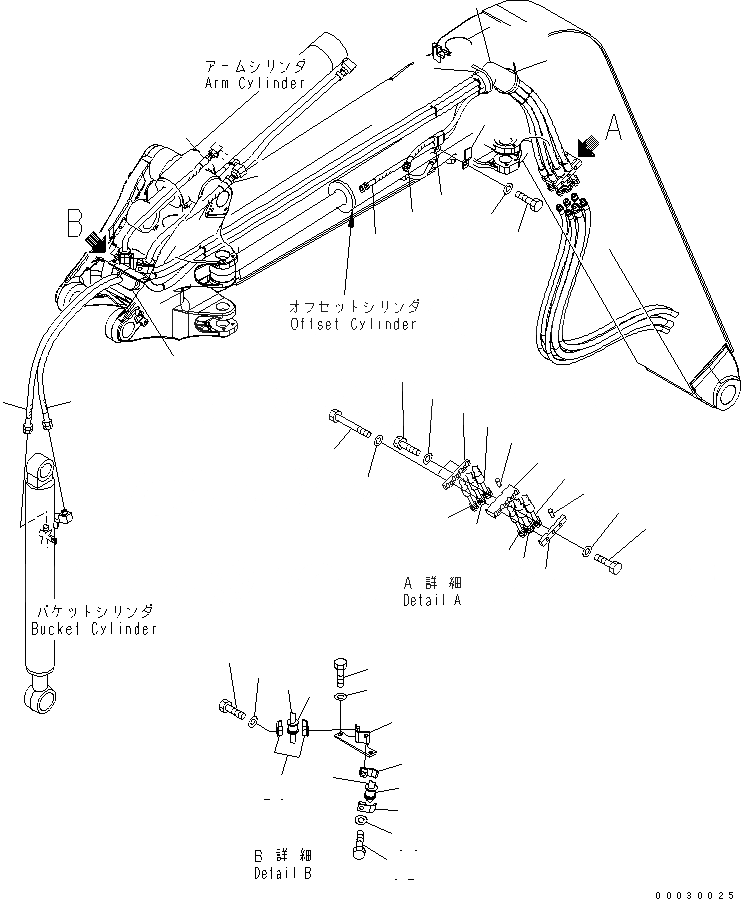

Запчасти Komatsu PC78UU-6 СТРЕЛА (ГИДРАВЛ ЛИНИЯ) (YELНИЗ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$4

21W-62-41301

HOSE ASS'Y

1

21W-62-41921

HOSE, 3630MM,ORANGE

2

21W-62-41931

HOSE, 1710MM,WHITE-BLACK

3

21W-62-41941

HOSE, 3610MM,GREEN

4

21W-62-41951

HOSE, 1930MM,WHITE-RED

5

21W-62-41961

HOSE, 4150MM,RED

6

21W-62-41971

HOSE, 4080MM,BLUE

7

21W-04-31290

SHEET

8

08034-20823

BAND

9

21W-62-41220

CLAMP

10

21W-62-47130

CLAMP

11

21W-62-47170

CLAMP

12

21W-70-46940

PIN

13

04205-11235

PIN

14

01011-81000

BOLT

15

01010-81030

BOLT

16

01643-31032

WASHER

17

01643-31032

WASHER

18

21W-70-41421

CUSHION

19

21W-70-41260NK

PLATE

19

21W-70-41260SA

PLATE (YELLOW)

20

01010-81230

BOLT

21

01643-31232

WASHER

22

21W-70-41211NK

BRACKET

22

21W-70-41211SA

BRACKET (YELLOW)

23

01010-81225

BOLT

24

01643-31232

WASHER

25

21W-70-41161

CUSHION

26

07094-10417

CLAMP

27

07095-00420

CUSHION

28

01010-81270

BOLT

29

01643-31232

WASHER

30

07094-10518

CLAMP

31

07095-00523

CUSHION

32

01010-81270

BOLT

33

01643-31232

WASHER
