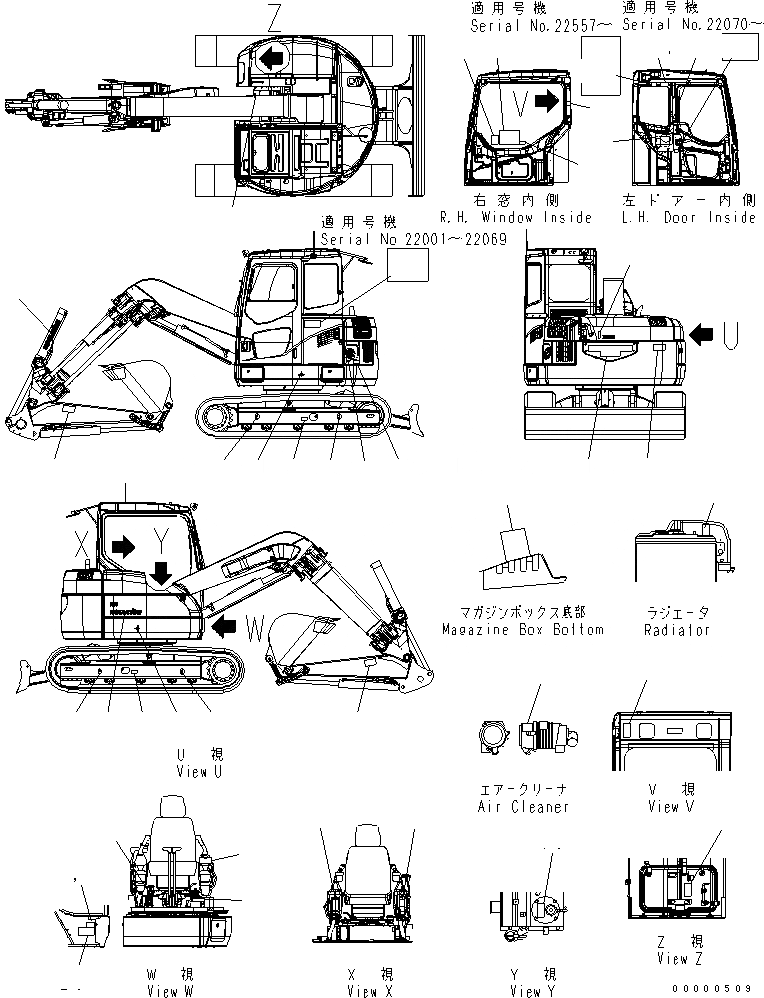

Запчасти Komatsu PC78UU-6 МАРКИРОВКА МАРКИРОВКА

1

21W-98-21110

PLATE¤ MARK,KOMATSU

2

09690-M0063

PLATE¤ MARK,KOMATSU

2A

21W-54-46350

SEAL

3

21W-98-41141

PLATE¤ MARK,MACHINE MODEL MARK

4

09690-C0450

PLATE¤ MARK,KOMATSU

4A

21W-98-21570

PLATE¤ OPERATING,PEDAL AND LEVER

5

09133-A1680

PLATE¤ SAFETY,KEEP OUT SWING AREA

6

09601-10000

PLATE¤ NAME,(LIMITED SUPPLY)

7

04418-13060

SCREW

8

21U-98-21250

PLATE¤ CAUTION,REPAIR FOR WINDOW

9

09134-A0880

PLATE¤ SAFETY,KEEP OUT OF WORKING AREA

9A

09971-00090

PLATE,FREON COLLECT/DESTRUCTION LAW

10

21W-98-41340

PLATE¤ OPERATING,JIS PATTERN

11

21W-98-41111

PLATE¤ CAUTION,SHIFT PATTERN

12

21W-98-41360

PLATE,STRUCTURE STANDARD

13

21W-98-41510

OIL CHART

14

21W-98-41320

PLATE¤ INSTRUCTION,AIR CLEANER (SINGLE ELEMENT)

|14

21W-98-41310

PLATE¤ INSTRUCTION,AIR CLEANER (DOUBLE ELEMENT)

15

21W-98-41180

PLATE¤ SAFETY,SWING PARKING BRAKE

16

09653-A0480

PLATE¤ SAFETY,SAFETY

17

20U-98-21443

PLATE¤ CAUTION,EMERGENCY SWITCH

18

09667-A0480

PLATE¤ SAFETY,REVOLUTION

19

09669-0000E

PLATE¤ CAUTION,FUEL TANK

|19

21W-98-21380

PLATE¤ CAUTION

20

09808-A0880

PLATE¤ SAFETY,BATTERY CABLE

21

21W-98-41330

PLATE,FULL

22

09657-A0880

PLATE¤ SAFETY,TRACK ADJUSTMENT

23

09963-00101

TAG

24

21U-98-31150

PLATE¤ MARK,SLING POSITION

25

21U-98-31160

PLATE¤ MARK,ILLUSTRATION OF SLINGING

26

21W-98-41240

PLATE¤ MARK,MACHINE BODY LIFT POSTURE

27

21W-98-41283

PLATE,FUSE BOX

|27

21W-98-41282

PLATE,FUSE BOX

|27

21W-98-41281

PLATE

28

21W-98-41172

PLATE¤ INSTRUCTION

28A

21W-54-46250

PLATE¤ MARK,CABIN WITH HEAD GUARD

29

09803-A0480

PLATE¤ SAFETY,FRONT WINDOW OPEN

30

22U-00-21170

DECAL,LOCK FOR FRONT LOWER WINDOW

|30

09970-00230

PLATE¤ MARK,GALEO
