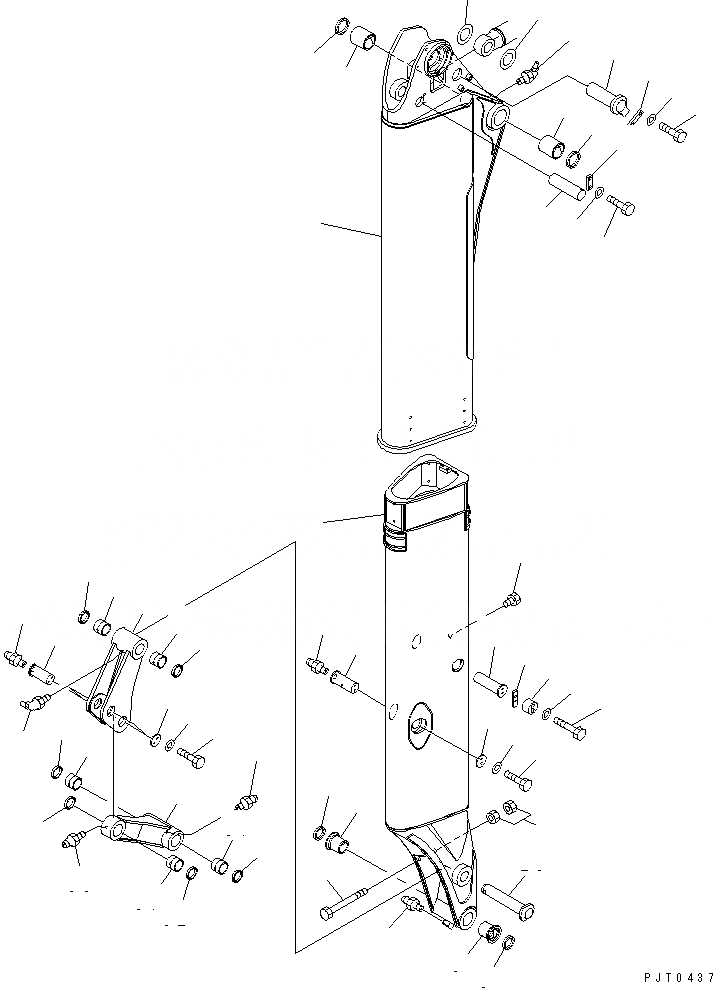

Запчасти Komatsu PC78UU-6 РУКОЯТЬ (РУКОЯТЬ И ПАЛЕЦ) (ДЛЯ SLIDE РУКОЯТЬ) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

21W-957-2710

OUTER,OUTER

2

20X-70-32120

BUSHING

3

07145-00065

SEAL

4

21W-957-2111

ARM,INNER

5

20X-70-22140

BUSHING

6

130-09-12931

SEAL

7

21W-957-2120

PIN

8

04082-00212

LOCK

9

01010-81230

BOLT

10

01643-31232

WASHER

11

21W-957-2230

PIN

12

21W-957-2270

PLATE

13

01010-80820

BOLT

14

01643-20816

WASHER

15

21W-957-2240

PIN

16

21W-957-2280

PLATE

17

01010-80855

BOLT

18

01640-20816

WASHER

19

21W-957-2660

BAR

20

21W-957-2210

LINK

21

07144-10505

BUSHING

22

07145-00050

SEAL

23

21W-957-2260

PIN

24

01019-31630

BOLT

25

01580-11613

NUT

26

21W-957-2250

PIN

27

21W-957-2270

PLATE

28

01010-80820

BOLT

29

01640-20816

WASHER

30

21W-957-2220

LINK

31

07144-10505

BUSHING

32

07145-00050

SEAL

33

21W-957-2720

PIN

34

07040-11812

PLUG

35

07020-00000

FITTING

36

07020-00675

FITTING

37

21W-70-11310

PLATE

38

01010-81230

BOLT

39

01643-31232

WASHER

40

21W-70-41490

SHIM¤ 4.0MM
