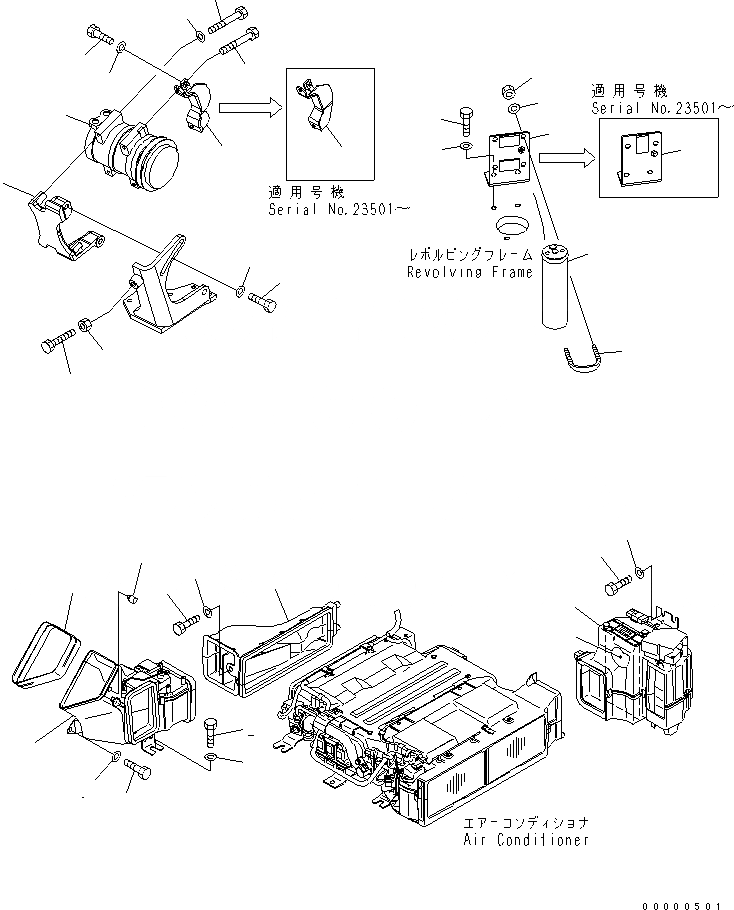

Запчасти Komatsu PC78UU-6 КОНДИЦ. ВОЗДУХА (БЛОК) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

22B-979-1711

DUCT

2

01010-D1020

BOLT

3

01643-71032

WASHER

4

01252-80616

BOLT

5

144-873-3270

WASHER

6

22U-979-2361

COVER

7

20Y-54-35780

STOPPER

8

22B-979-1691

DUCT

9

01010-D1020

BOLT

10

01643-71032

WASHER

11

22B-979-1720

DUCT,INTAKE

12

22B-979-1740

FILTER

13

01010-D1020

BOLT

14

01643-71032

WASHER

15

22B-979-1631

COMPRESSOR

16

203-979-6881

BRACKET

17

01010-81435

BOLT

18

01643-31445

WASHER

19

01017-51410

BOLT

20

01580-11411

NUT

21

01010-80895

BOLT

22

01643-30823

WASHER

23

21W-979-4411

BRACKET

|23

21W-979-4410

BRACKET

24

21W-979-4420

BOLT

25

01010-80820

BOLT

26

01643-30823

WASHER

27

22B-979-1650

RECEIVER DRYER

28

07283-36155

CLIP

|28

07283-36155

CLIP

29

01597-01009

NUT

|29

01597-01009

NUT

30

01643-31032

WASHER

|30

01643-31032

WASHER

31

21W-979-4232

BRACKET

|31

21W-979-4231

BRACKET

32

01010-81225

BOLT

33

01643-31232

WASHER
