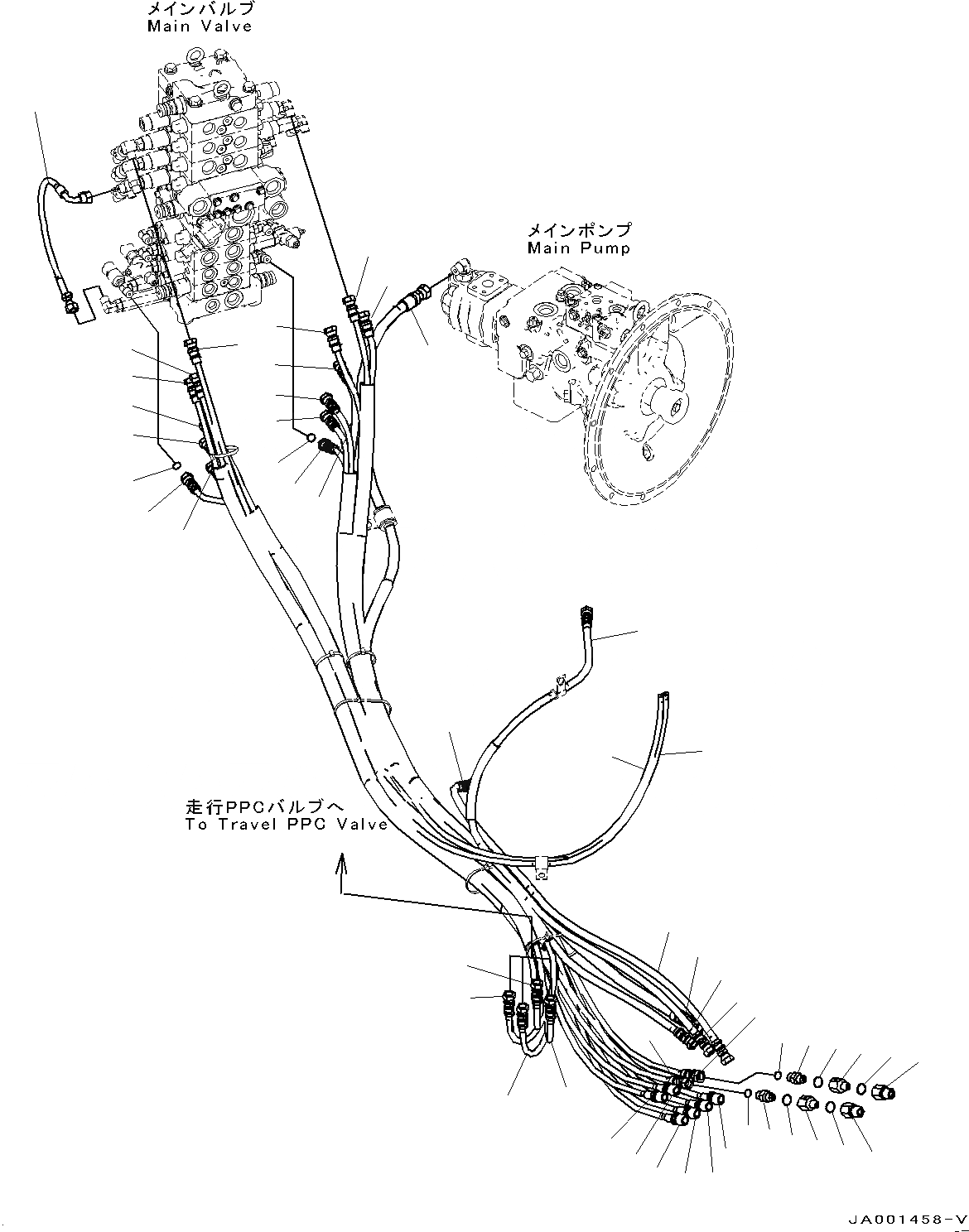

Запчасти Komatsu PC78US-8 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) КЛАПАН ТРУБЫ, ОСНОВН. ТРУБЫ (/) (№-) ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) КЛАПАН ТРУБЫ, ДЛЯ MACHINE С РУКОЯТЬ HOLDING КЛАПАН
№
Артикул
Название
Примечание
Количество
1
21W-62-53520
Hose
1
21U-62-34760
Band, Red
2
21W-62-51150
Hose
2
21U-62-34730
Band, Green
2
21U-62-34710
Band, Yellow
3
21W-62-51150
Hose
3
21U-62-34740
Band, Orange
3
21U-62-34710
Band, Yellow
4
21W-62-51140
Hose
4
21U-62-34780
Band, Brown
5
21W-62-51121
Hose
5
21U-62-34740
Band, Orange
6
21W-62-51110
Hose
6
21U-62-34710
Band, Yellow
7
21W-62-53170
Hose
7
21U-62-34750
Band, Blue
7
21U-62-34710
Band, Yellow
8
20U-62-22190
O-ring
|$18
21W-60-43200
Valve Assembly
9
21W-62-43930
Nipple
10
21W-62-44750
Body
11
21W-62-42940
Nipple
12
07002-11423
O-ring
13
02896-11008
O-ring
14
21W-62-51280
Hose
14
21U-62-34730
Band, Green
14
21U-62-34750
Band, Blue
15
21W-62-41610
Hose
15
21U-62-34750
Band, Blue
16
21W-62-41521
Hose
16
21U-62-34730
Band, Green
17
21W-62-41521
Hose
17
21U-62-34720
Band, Black
18
21W-62-41451
Hose
18
21U-62-34720
Band, Black
18
21U-62-34710
Band, Yellow
19
21W-62-41451
Hose
19
21U-62-34780
Band, Brown
19
21U-62-34710
Band, Yellow
20
02760-00220
Hose
21
21W-62-53271
Hose
21
21U-62-34760
Band, Red
21
21U-62-34720
Band, Black
22
20U-62-22190
O-ring
|$44
21W-60-43200
Valve Assembly
23
21W-62-43930
Nipple
24
21W-62-44750
Body
25
21W-62-42940
Nipple
26
07002-11423
O-ring
27
02896-11008
O-ring
28
21W-62-51330
Hose, Yellow-Yellow
29
21W-62-51320
Hose, Green-Red
30
21W-62-51310
Hose, Red-Yellow
31
02761-00204
Hose, Face Seal Type
Выбрано товаров: 54
