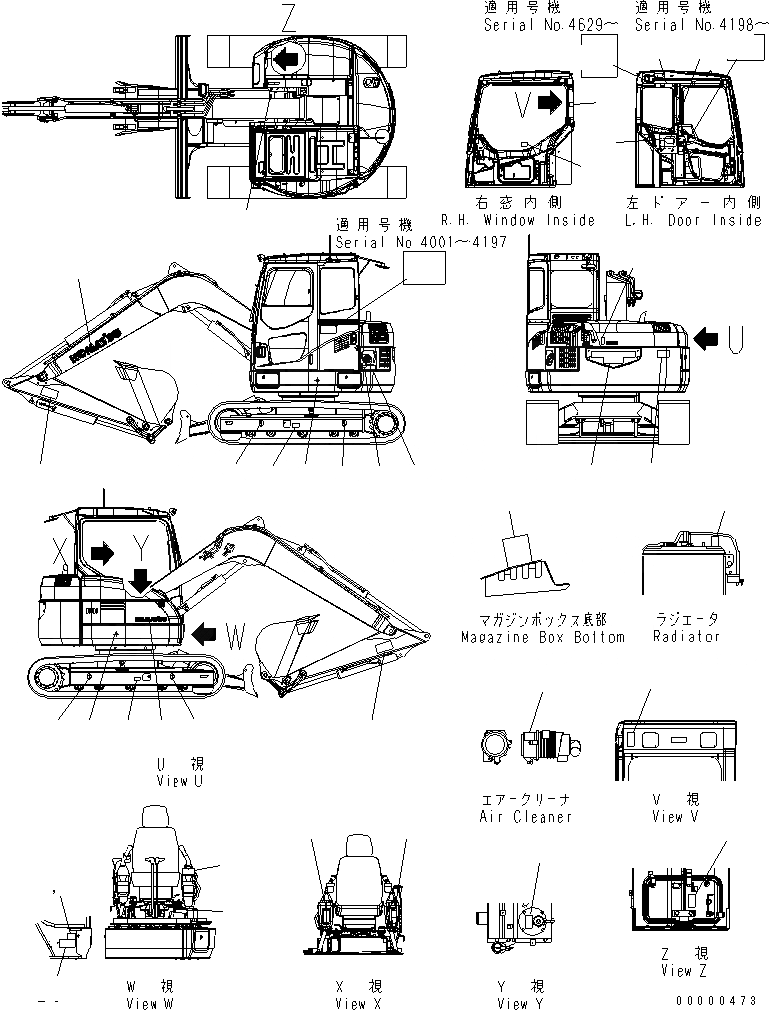

Запчасти Komatsu PC78US-6 МАРКИРОВКА (BLUE)(№-) МАРКИРОВКА

1

09690-M0063

PLATE¤ MARK,KOMATSU

1A

21W-54-46350

SEAL

2

21W-98-44120

PLATE¤ MARK,MACHINE MODEL

3

09690-C0800

PLATE¤ MARK,KOMATSU

4

09690-C0450

PLATE¤ MARK,KOMATSU

5

09133-A1680

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

6

09601-10001

PLATE¤ NAME

|6

09601-10000

PLATE¤ NAME,(LIMITED SUPPLY)

7

04418-13060

SCREW

8

21U-98-21250

PLATE¤ CAUTION,IF WINDOW IS BROKEN OR BECOMES

9

09134-A0880

PLATE¤ SAFETY,KEEP OUT OF WORKING AREA

9A

09971-00090

PLATE,FREON COLLECT/DESTRUCTION LAW

10

21W-98-41340

PLATE¤ OPERATING,JIS PATTERN

11

21W-98-41111

PLATE¤ CAUTION,ALARM ASS'Y PLATE

12

21W-98-44160

PLATE,STRUCTURE STANDARD

13

21W-98-41510

OIL CHART

14

21W-98-41320

PLATE¤ INSTRUCTION,AIR CLEANER (SINGLE ELEMENT)

|14

21W-98-41310

PLATE¤ INSTRUCTION,AIR CLEANER (DOUBLE ELEMENT)

15

21W-98-41180

PLATE¤ SAFETY,SWING PARKING BRAKE

16

09653-A0480

PLATE¤ SAFETY,HOT OIL/WATER

17

09667-A0480

PLATE¤ SAFETY,REVOLUTION

18

09669-0000E

PLATE¤ CAUTION,FUEL INLET

|18

21W-98-21380

PLATE¤ CAUTION

19

09808-A0880

PLATE¤ SAFETY,BATTERY CABLE

20

21W-98-41330

PLATE,FULL

21

09657-A0880

PLATE¤ SAFETY,TRACK ADJUSTMENT

22

09963-00101

TAG,DO NOT OPERATE

23

21U-98-31150

PLATE¤ MARK,SLING POSITION

24

21U-98-31160

PLATE¤ MARK,LOCATION OF CENTER OF GRAVITY

25

21W-98-41240

PLATE¤ MARK,MACHINE BODY LIFT POSTURE

26

21W-98-44151

PLATE¤ MARK,FUSE BOX

|26

21W-98-44150

PLATE¤ MARK,FUSE BOX

26A

22B-54-17650

PLATE,CABIN WITH HEAD GUARD

27

09803-A0480

PLATE¤ SAFETY,LOCK WHEN OPEN WINDOW WARNING

28

22U-00-21170

DECAL,LOCK FOR FRONT LOWER WINDOW

|28

09970-00230

PLATE¤ MARK,GALEO
