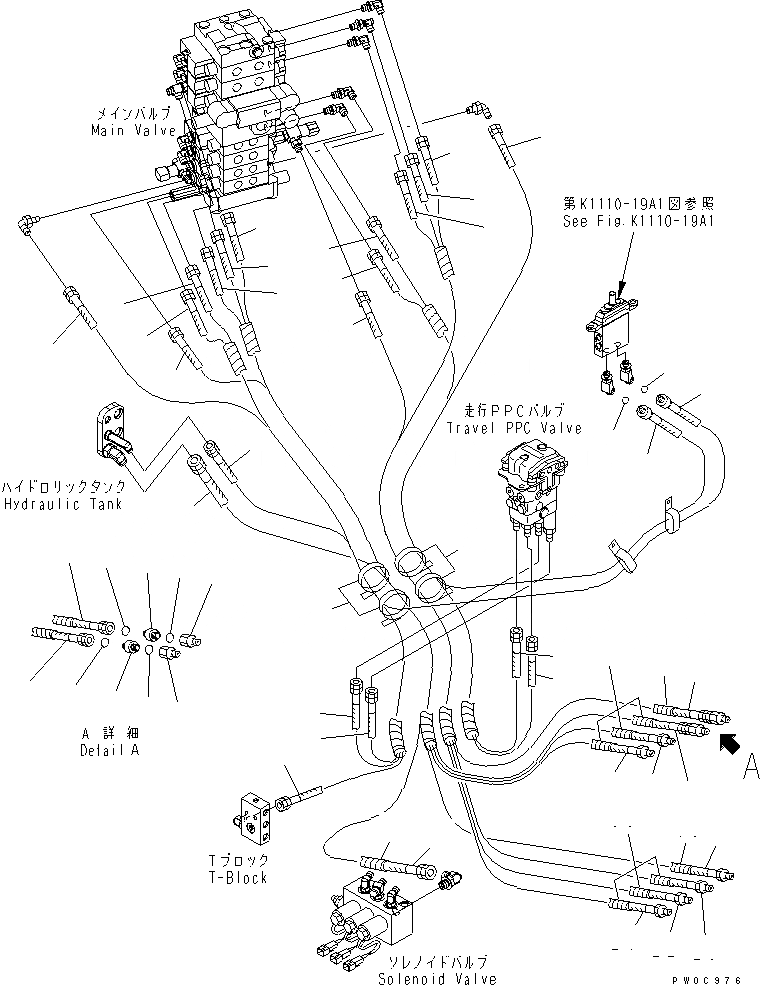

Запчасти Komatsu PC78US-6 P.P.C ОСНОВН. ЛИНИЯ (/) (ОТВАЛ)(№-) ГИДРАВЛИКА

1

21W-62-41411

HOSE¤ 2010MM,BROWN

2

20U-62-22190

O-RING

3

21W-62-41480

HOSE¤ 1860MM,ORANGE-YELLOW

4

21W-62-41480

HOSE¤ 1860MM,BLACK-GREEN

5

21W-62-41771

HOSE¤ 1650MM

6

21W-62-41441

HOSE¤ 2050MM,BROWN

7

21W-62-41521

HOSE¤ 2200MM,YELLOW

8

21W-62-41581

HOSE¤ 2270MM,ORANGE

9

21W-62-41610

HOSE¤ 2260MM,RED

10

21W-62-41761

HOSE¤ 1460MM,BLACK-BLUE

11

21W-62-43380

NIPPLE

12

21W-62-42940

NIPPLE

13

02896-11008

O-RING

14

07002-11423

O-RING

15

08210-00606

SPIRAL TUBE

16

08210-01204

SPIRAL TUBE

17

08034-20536

BAND

18

21W-62-41421

HOSE¤ 1990MM,RED-BLACK

19

20U-62-22190

O-RING

20

21W-62-41451

HOSE¤ 1950MM,BROWN-YELLOW

21

21W-62-41470

HOSE¤ 1930MM,BLACK-YELLOW

22

21W-62-41551

HOSE¤ 2280MM,BLACK

23

21W-62-41561

HOSE¤ 2290MM,GREEN

24

21W-62-41590

HOSE¤ 2350MM,BLUE

25

21W-62-43380

NIPPLE

26

21W-62-42940

NIPPLE

27

02760-00221

HOSE

28

02896-11008

O-RING

29

07002-11423

O-RING

30

08210-00606

SPIRAL TUBE

31

08034-20536

BAND
