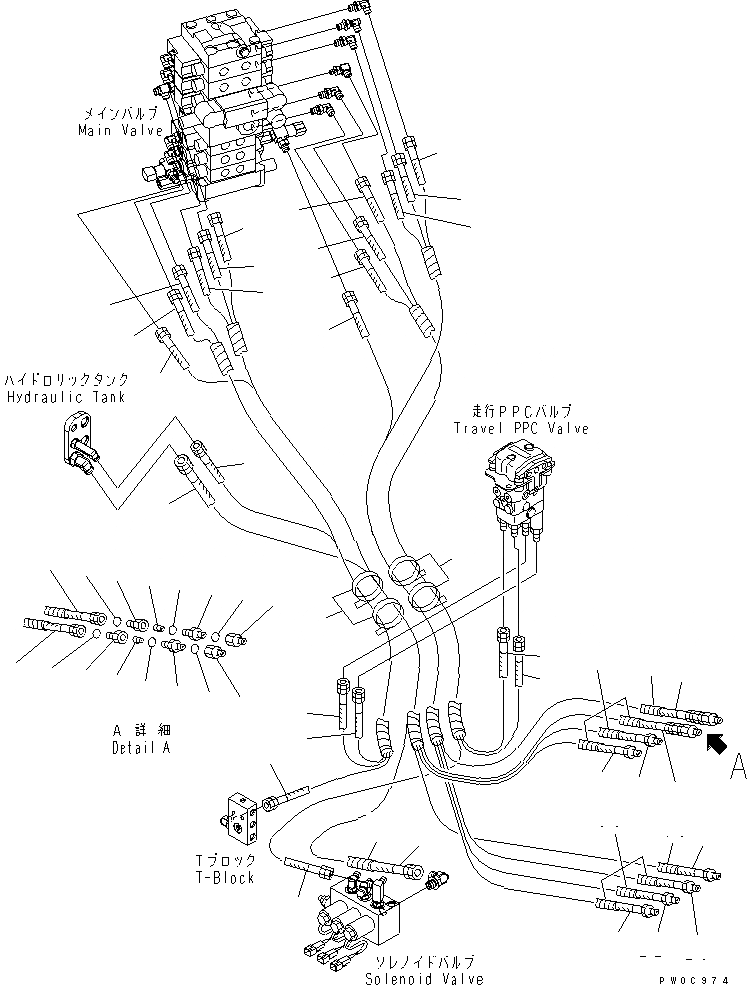

Запчасти Komatsu PC78US-6 P.P.C ОСНОВН. ЛИНИЯ (/)(№-) ГИДРАВЛИКА

1

21W-62-41480

HOSE¤ 1860MM,ORANGE-YELLOW

2

21W-62-41480

HOSE¤ 1860MM,GREEN-YELLOW

3

21W-62-41771

HOSE¤ 1650MM,BLACK-GREEN

4

21W-62-41441

HOSE¤ 2050MM,BROWN

5

21W-62-41521

HOSE¤ 2200MM,YELLOW

6

21W-62-41581

HOSE¤ 2270MM,ORANGE

7

21W-62-41610

HOSE¤ 2260MM,RED

8

21W-62-41761

HOSE¤ 1460MM,BLACK-BLUE

9

20T-60-82320

POPPET

10

21W-62-42870

NIPPLE

11

21W-62-42950

NIPPLE

12

07002-11423

O-RING

13

21W-62-42940

NIPPLE

14

02896-11008

O-RING

15

07002-11423

O-RING

16

08210-00606

SPIRAL TUBE

17

08210-01204

SPIRAL TUBE

18

08034-00536

BAND

19

21W-62-41451

HOSE¤ 1950MM,BROWN-YELLOW

20

21W-62-41470

HOSE¤ 1930MM,BLACK-YELLOW

21

21W-62-45230

HOSE¤ 1950MM

22

21W-62-41551

HOSE¤ 2280MM,BLACK

23

21W-62-41561

HOSE¤ 2290MM,GREEN

24

21W-62-41590

HOSE¤ 2350MM,BLUE

25

20T-60-82320

POPPET

26

21W-62-42870

NIPPLE

27

21W-62-42950

NIPPLE

28

07002-11423

O-RING

29

21W-62-42940

NIPPLE

30

02760-00221

HOSE

31

02896-11008

O-RING

32

07002-11423

O-RING

33

08210-00606

SPIRAL TUBE

34

08034-00536

BAND
