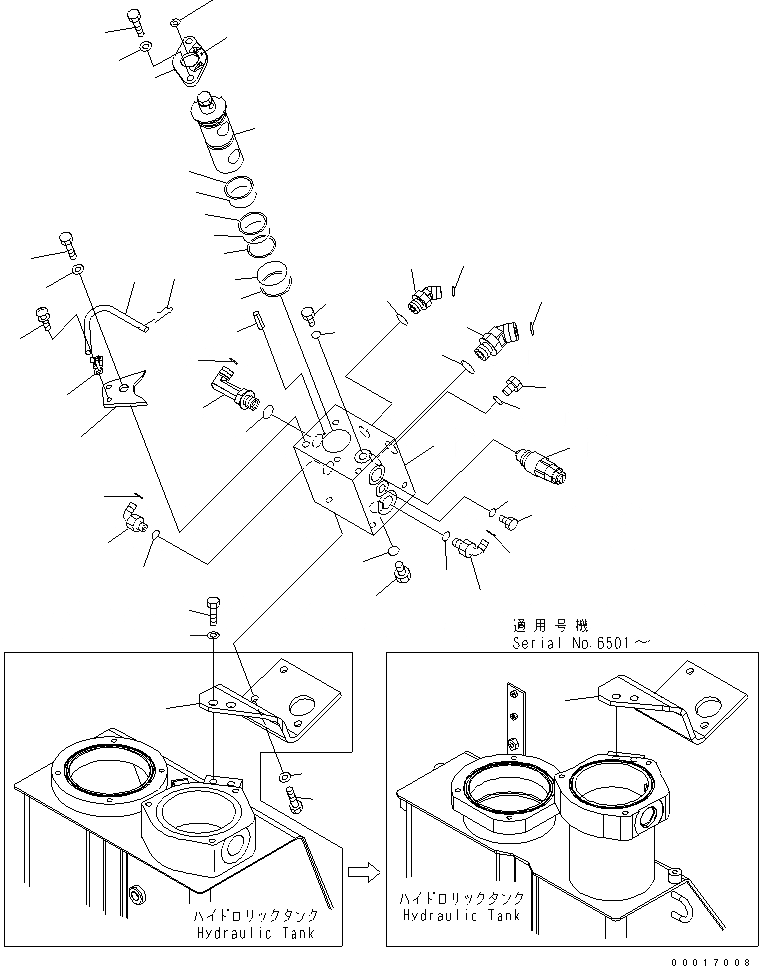

Запчасти Komatsu PC78US-6 НАВЕСНОЕ ОБОРУД-Е (MODE CHANGE КЛАПАН) (С СЕРВИСНЫМ КЛАПАНОМ) (YELНИЗ.)(№-) ГИДРАВЛИКА

|$6

21W-973-4300

VALVE ASS'Y

1

203-62-65570

PLATE

2

203-62-65580

BAR

3

20B-54-12210

SPRING

4

203-00-56640

PLATE, MARK

5

203-62-65380

PLATE, MARK

6

01010-81230

BOLT

7

01643-31232

WASHER

8

01023-10406

SCREW

9

04052-10833

PIN

|$16

21W-973-3301

VALVE ASS'Y

10

21W-973-3311

BLOCK

11

203-62-65122

ROTOR

12

20Y-970-3350

FLANGE

13

01010-81025

BOLT

14

01643-31032

WASHER

15

04025-00412

PIN,SPRING

16

07000-13042

O-RING

17

07000-13048

O-RING

18

07001-03042

RING,BACK-UP

19

07001-03048

RING,BACK-UP

20

07002-11223

O-RING

21

07002-12034

O-RING

22

07002-12434

O-RING

23

07040-11209

PLUG

24

07040-12012

PLUG

25

07040-12414

PLUG

26

709-70-74700

VALVE ASS'Y

27

21W-973-4730

BRACKET

27

21W-973-4120

BRACKET

28

01010-81030

BOLT

29

01643-31032

WASHER

30

01010-81230

BOLT

31

01643-31232

WASHER

32

21W-62-42540

ELBOW

33

07002-12034

O-RING

34

02896-11012

O-RING

35

02782-10422

ELBOW

36

07002-12034

O-RING

37

02896-11012

O-RING

38

02783-10422

ELBOW

39

07002-12034

O-RING

40

02896-11012

O-RING

41

02783-10628

ELBOW

42

07002-12434

O-RING

43

02896-11018

O-RING

44

02782-10628

ELBOW

45

07002-12434

O-RING

46

02896-11018

O-RING
