Запчасти Komatsu PC78US-6 P.P.C ОСНОВН. ЛИНИЯ (/) (ОТВАЛ)(№-) ГИДРАВЛИКА

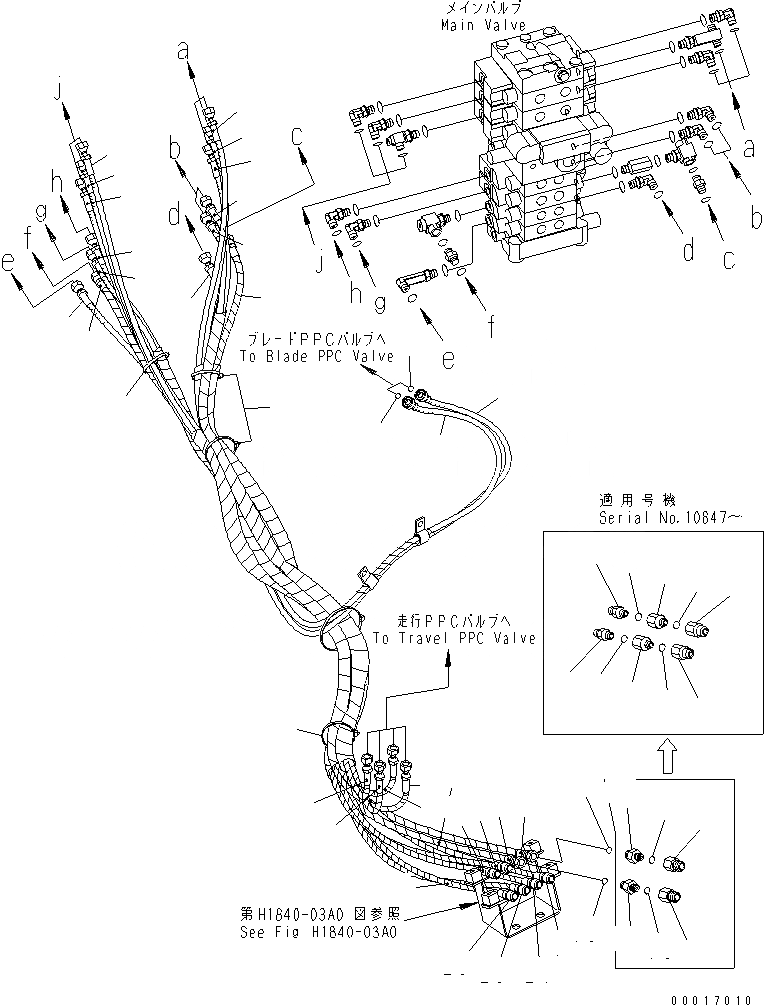

Схема запчастей Komatsu PC78US-6 - P.P.C ОСНОВН. ЛИНИЯ (/) (ОТВАЛ)(№-) ГИДРАВЛИКА
1
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
10
11
12
12
13
14
15
16
17
18
18
19
19
20
21
21
22
22
23
23
24
24
25
25
26
27
28
29
29
30
31
32
32
33
34
35
36

Артикул

Название

Примечание

Количество

1

21W-62-41411

HOSE, 2010MM,BLUE-YELLOW

1

21U-62-34750

BAND, BLUE

1

21U-62-34710

BAND, YELLOW

2

20U-62-22190

O-RING

3

21W-62-41480

HOSE, 1860MM,ORANGE-YELLOW

3

21U-62-34740

BAND, ORANGE

3

21U-62-34710

BAND, YELLOW

4

21W-62-41480

HOSE, 1860MM,GREEN-YELLOW

4

21U-62-34730

BAND, GREEN

4

21U-62-34710

BAND, YELLOW

5

21W-62-41441

HOSE, 2050MM,BROWN

5

21U-62-34780

BAND, BROWN

6

21W-62-41521

HOSE, 2200MM,YELLOW

6

21U-62-34710

BAND, YELLOW

7

21W-62-41581

HOSE, 2270MM,ORANGE

7

21U-62-34740

BAND, ORANGE

8

21W-62-41610

HOSE, 2260MM,RED

8

21U-62-34760

BAND, RED

9

21W-62-43930

NIPPLE

10

21W-62-44750

BODY

11

21W-62-42940

NIPPLE

12

07002-11423

O-RING

13

21W-62-43380

NIPPLE

14

21W-62-42940

NIPPLE

15

02896-11008

O-RING

16

07002-11423

O-RING

17

08210-00606

SPIRAL TUBE

18

08034-20536

BAND

19

21W-62-41421

HOSE, 1990MM,RED-BLACK

19

21U-62-34760

BAND, RED

19

21U-62-34720

BAND, BLACK

20

20U-62-22190

O-RING

21

21W-62-41451

HOSE, 1950MM,BROWN-YELLOW

21

21U-62-34780

BAND, BROWN

21

21U-62-34710

BAND, YELLOW

22

21W-62-41470

HOSE, 1930MM,BLACK-YELLOW

22

21U-62-34720

BAND, BLACK

22

21U-62-34710

BAND, YELLOW

23

21W-62-41551

HOSE, 2280MM,BLACK

23

21U-62-34720

BAND, BLACK

24

21W-62-41561

HOSE, 2290MM,GREEN

24

21U-62-34730

BAND, GREEN

25

21W-62-41590

HOSE, 2350MM,BLUE

25

21U-62-34750

BAND, BLUE

26

21W-62-43930

NIPPLE

27

21W-62-44750

BODY

28

21W-62-42940

NIPPLE

29

07002-11423

O-RING

30

21W-62-43380

NIPPLE

31

21W-62-42940

NIPPLE

32

02760-00221

HOSE,WHITE

32

21U-62-34770

BAND, WHITE

33

02896-11008

O-RING

34

07002-11423

O-RING

35

08210-00606

SPIRAL TUBE

36

08034-20536

BAND

Выбрано товаров: 56
