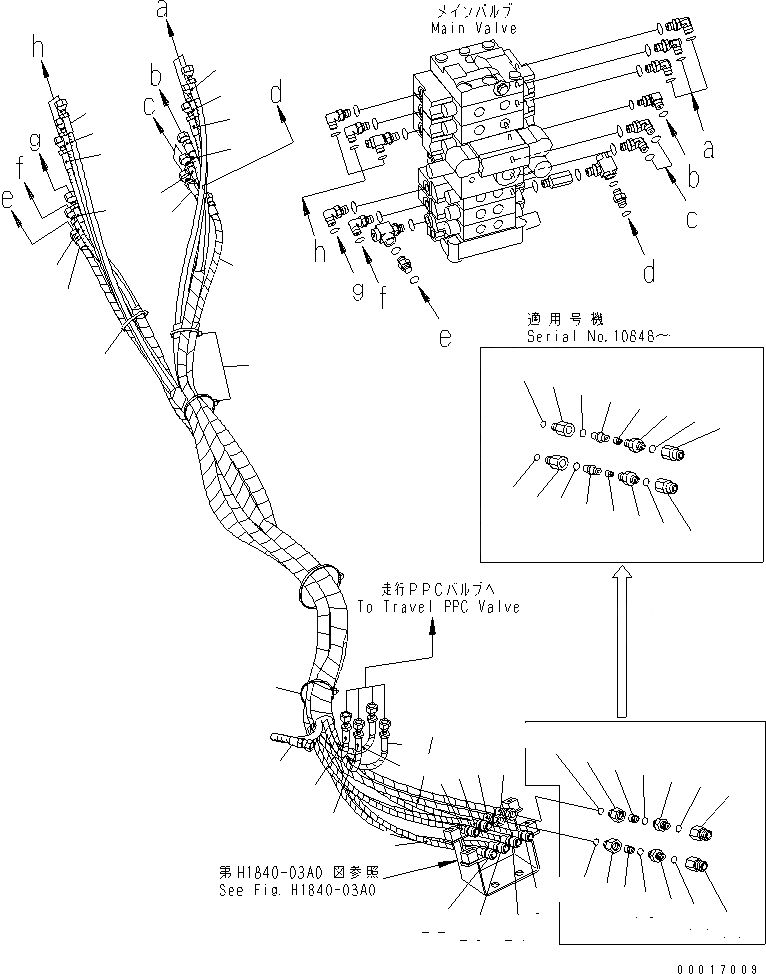

Запчасти Komatsu PC78US-6 P.P.C ОСНОВН. ЛИНИЯ (/)(№-) ГИДРАВЛИКА

1

21W-62-41480

HOSE, 1860MM,ORANGE-YELLOW

1

21U-62-34740

BAND, ORANGE

1

21U-62-34710

BAND, YELLOW

2

21W-62-41480

HOSE, 1860MM,GREEN-YELLOW

2

21U-62-34730

BAND, GREEN

2

21U-62-34710

BAND, YELLOW

3

21W-62-41441

HOSE, 2050MM,BROWN

3

21U-62-34780

BAND, BROWN

4

21W-62-41521

HOSE, 2200MM,YELLOW

4

21U-62-34710

BAND, YELLOW

5

21W-62-41581

HOSE, 2270MM,ORANGE

5

21U-62-34740

BAND, ORANGE

6

21W-62-41610

HOSE, 2260MM,RED

6

21U-62-34760

BAND, RED

7

20T-60-82320

POPPET

8

21W-62-44770

BODY

8

21W-62-42870

NIPPLE

9

21W-62-44780

NIPPLE

9

21W-62-42950

NIPPLE

10

07002-11423

O-RING

10

07002-11423

O-RING

11

21W-62-42940

NIPPLE

12

21W-62-44740

PLUG

13

02896-11008

O-RING

14

07002-11423

O-RING

15

08210-00606

SPIRAL TUBE

16

08034-00536

BAND

17

21W-62-41451

HOSE, 1950MM,BROWN-YELLOW

17

21U-62-34780

BAND, BROWN

17

21U-62-34710

BAND, YELLOW

18

21W-62-41470

HOSE, 1930MM,BLACK-YELLOW

18

21U-62-34720

BAND, BLACK

18

21U-62-34710

BAND, YELLOW

19

21W-62-45230

HOSE, 1950MM

20

21W-62-41551

HOSE, 2280MM,BLACK

20

21U-62-34720

BAND, BLACK

21

21W-62-41561

HOSE, 2290MM,GREEN

21

21U-62-34730

BAND, GREEN

22

21W-62-41590

HOSE, 2350MM,BLUE

22

21U-62-34750

BAND, BLUE

23

20T-60-82320

POPPET

24

21W-62-44770

BODY

24

21W-62-42870

NIPPLE

25

21W-62-44780

NIPPLE

25

21W-62-42950

NIPPLE

26

07002-11423

O-RING

26

07002-11423

O-RING

27

21W-62-42940

NIPPLE

28

21W-62-44740

PLUG

29

02760-00221

HOSE,WHITE

29

21U-62-34770

BAND, WHITE

30

02896-11008

O-RING

31

07002-11423

O-RING

32

08210-00606

SPIRAL TUBE

33

08034-00536

BAND
