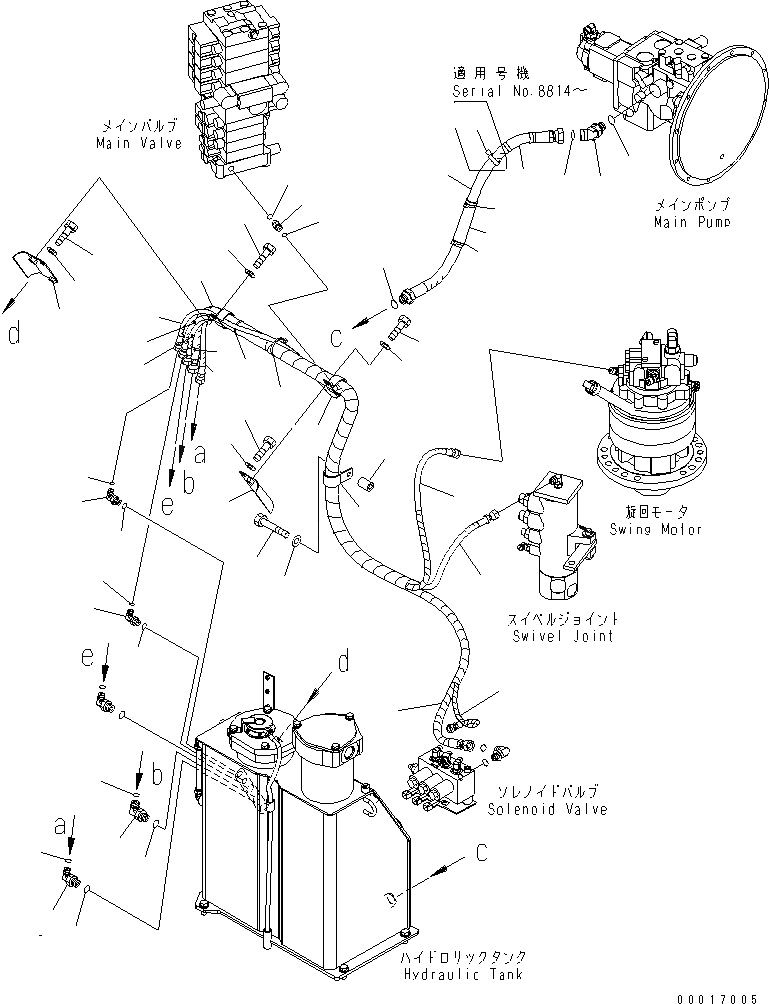

Запчасти Komatsu PC78US-6 ВОЗВРАТН. ЛИНИЯ (ДЛЯ ЕС)(№-) ГИДРАВЛИКА

1

02760-00225

HOSE,BLACK-GREEN

1

21U-62-34720

BAND, BLACK

1

21U-62-34730

BAND, GREEN

2

02760-00320

HOSE,WHITE-GREEN

2

21U-62-34770

BAND, WHITE

2

21U-62-34730

BAND, GREEN

3

21W-62-45910

HOSE,BLACK-BLUE

3

21U-62-34720

BAND, BLACK

3

21U-62-34750

BAND, BLUE

4

21W-62-45920

HOSE,WHITE-BLUE

4

21U-62-34770

BAND, WHITE

4

21U-62-34750

BAND, BLUE

5

08034-20536

BAND

6

02782-10315

ELBOW

7

07002-12034

O-RING

8

02896-11009

O-RING

9

02781-0021D

UNION

10

07002-11423

O-RING

11

02896-11008

O-RING

12

21W-62-45560

HOSE ASS'Y

13

01010-81220

BOLT

14

01643-31232

WASHER

15

02782-10210

ELBOW

16

07002-11423

O-RING

17

02896-11008

O-RING

18

02782-10210

ELBOW

19

07002-11423

O-RING

20

02896-11008

O-RING

21

02782-10422

ELBOW

22

07002-12034

O-RING

23

02896-11012

O-RING

24

07002-12434

O-RING

25

21W-62-43642

HOSE ASS'Y

26

08210-01801

SPIRAL TUBE

27

203-62-52210

RUBBER

28

08034-20519

BAND

29

02783-10628

ELBOW

30

07002-62434

O-RING

31

02896-61018

O-RING

32

21W-62-44370

PLATE

33

21W-62-44380

PLATE

34

01010-81220

BOLT

35

01643-31232

WASHER

36

23S-61-24870

CLIP

37

20Y-03-11220

COLLAR

38

01010-81060

BOLT

39

01643-31032

WASHER

40

08034-20536

BAND

41

08034-40521

BAND
