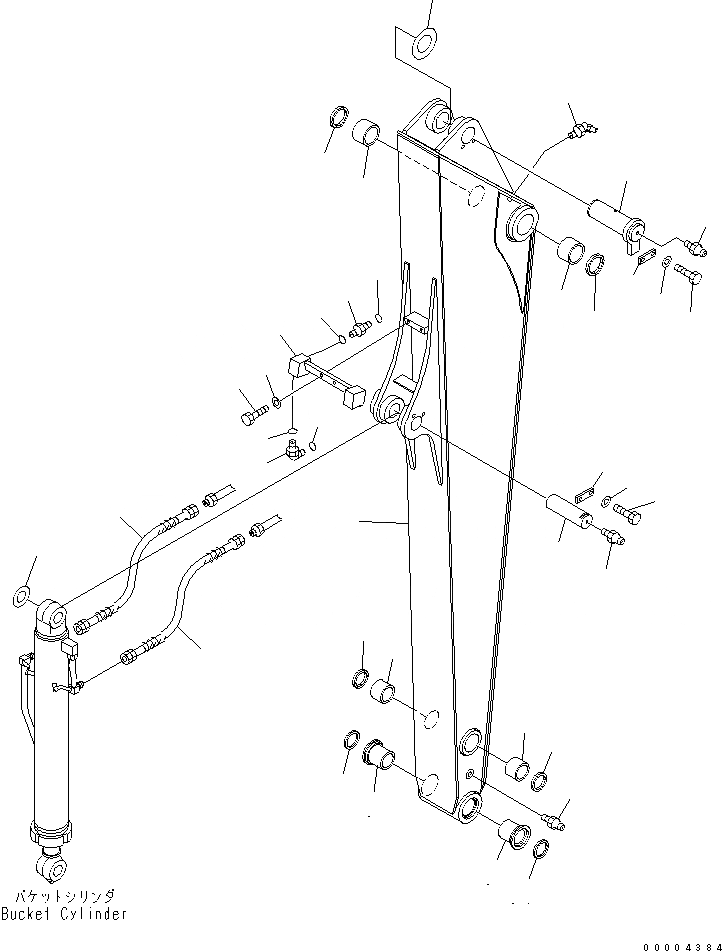

Запчасти Komatsu PC78MR-6 РУКОЯТЬ (ДЛЯ УДЛИНН. РУКОЯТИ) (НАВЕСН. ОБОРУД.) (YELНИЗ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$3

21W-943-0143

ARM ASS'Y

|$4

21W-943-0142

ARM ASS'Y

|$5

21W-943-0141

ARM ASS'Y

1

ARM

1

ARM (YELLOW)

2

21W-70-41361

BUSHING

2

21W-70-41360

BUSHING

3

20X-70-22140

BUSHING

4

21W-70-41621

BUSHING

4

21W-70-41620

BUSHING

5

07020-00000

FITTING,GREASE

6

07020-00900

FITTING,GREASE

7

21W-62-44230

HOSE

8

201-943-6120

ELBOW

9

01010-81030

BOLT

10

01643-31032

WASHER

11

21W-62-42440

NIPPLE

12

02896-11012

O-RING

13

07002-12034

O-RING

14

21W-62-42530

ELBOW

15

02896-11012

O-RING

16

07002-12034

O-RING

17

21W-70-44320NK

PIN

17

21W-70-44320SA

PIN (YELLOW)

18

205-70-66580

PLATE

19

01010-81230

BOLT

20

01643-31232

WASHER

21

21Y-70-14770

SPACER, 1.0MM

22

07020-00000

FITTING,GREASE

23

201-70-72241

PIN

24

04082-00212

LOCK

25

01010-81230

BOLT

26

01643-31232

WASHER

27

22C-70-31510

SPACER, 1.0MM

28

07020-00000

FITTING,GREASE

29

07145-00060

SEAL,DUST

30

21W-70-41430

SEAL,DUST

31

130-09-12931

SEAL,DUST
