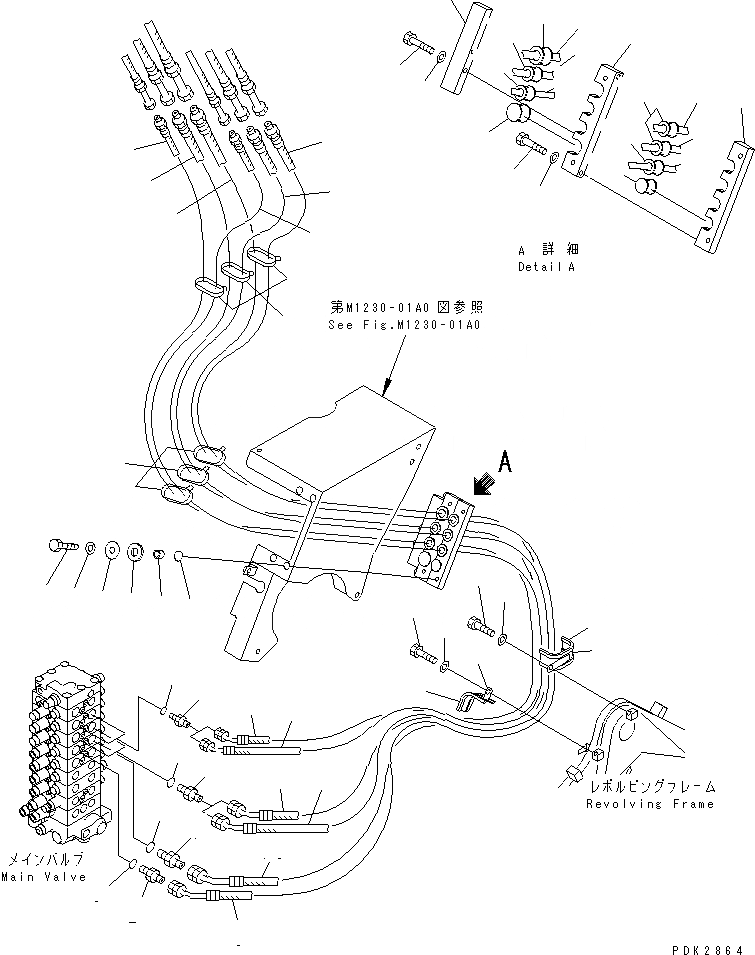

Запчасти Komatsu PC75UU-3 ЛИНИЯ АКТУАТОРА (КОВШ¤ РУКОЯТЬ И OFFSET) ГИДРАВЛИКА

1

07230-20522

UNION

2

203-62-56830

NIPPLE

3

07002-12434

O-RING

4

07230-20422

UNION

5

07002-12034

O-RING

6

07230-20315

UNION

7

07002-12034

O-RING

8

21W-62-31560

HOSE, 2300MM,ORANGE

9

21W-62-31560

HOSE, 2300MM,BLUE

10

21W-62-31570

HOSE, 2300MM,GREEN

11

21W-62-31211

HOSE, 2400MM,RED

12

21W-62-31241

HOSE, 2300MM,WHITE-RED

13

21W-62-31241

HOSE, 2300MM,WHITE-BLACK

14

20U-62-22911

PLATE

15

21W-62-32930

PLATE

16

20U-62-22931

PLATE

17

21W-62-23110

WASHER

18

21W-62-22970

SHEET

19

21W-62-22810

SPACER

20

07000-02015

O-RING

21

01010-81040

BOLT

22

01643-31032

WASHER

23

01010-80860

BOLT

24

01643-30823

WASHER

25

07095-20420

CUSHION

26

07095-20523

CUSHION

27

20U-62-23250

CUSHION

28

20U-62-22940

CUSHION

29

20U-62-22460

CUSHION

30

08034-20519

BAND

31

21W-62-31731

BRACKET

32

21W-62-31860

CUSHION

33

01010-81220

BOLT

34

01643-31232

WASHER

35

21W-62-31742

BRACKET

36

21W-62-31980

CUSHION

37

01010-81220

BOLT

38

01643-31232

WASHER
