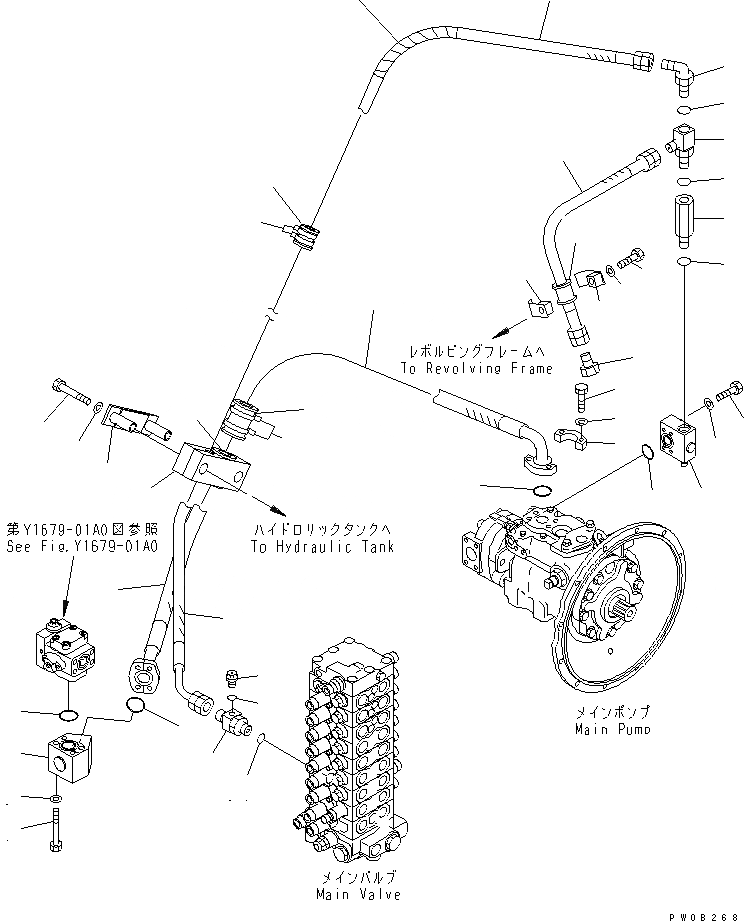

Запчасти Komatsu PC75UU-3 ЛИНИЯ ПОДАЧИ(№9-) ГИДРАВЛИКА

1

07371-31049

FLANGE

2

07000-13032

O-RING

3

07372-21035

BOLT

4

01643-51032

WASHER

5

21W-62-33130

HOSE

6

21W-62-31661

BLOCK

7

01010-81090

BOLT

8

01643-31032

WASHER

9

07000-13035

O-RING

10

21W-62-31132

BLOCK

11

07000-13030

O-RING

12

01010-80855

BOLT

13

01643-30823

WASHER

14

21W-62-31340

HOSE

15

22B-62-12150

JOINT

16

07002-12434

O-RING

17

8221-62-1360

ELBOW

18

07235-10522

ELBOW

19

201-62-71170

HOSE, 555MM

20

07376-50522

PLUG

21

21W-62-33320

CLAMP

22

21W-62-33330

CLAMP

23

01010-81085

BOLT

24

01643-31032

WASHER

25

07094-10518

CLAMP

25

07094-10417

CLAMP

26

07095-00526

CUSHION

26

07095-00423

CUSHION

27

01010-81060

BOLT

28

01643-31032

WASHER

29

203-62-32440

COVER

30

07095-01035

CUSHION

31

07095-00423

CUSHION

32

08034-00519

BAND

32A

07095-01035

CUSHION

32B

08034-00823

BAND

33

21W-62-31821

TEE

34

07002-12434

O-RING

35

20U-62-31250

PLUG

36

07002-11023

O-RING
