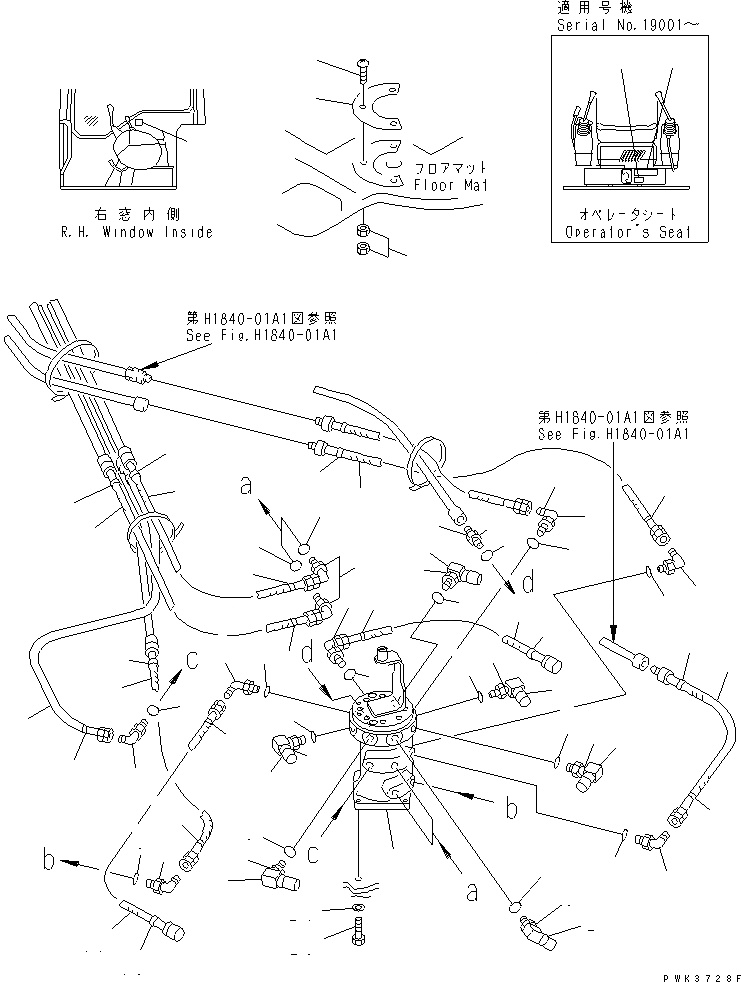

Запчасти Komatsu PC75UU-3 P.P.C. ОСНОВН. ЛИНИЯ (WAY КЛАПАН) (MULTIPLE PATTERN УПРАВЛ-Е) ГИДРАВЛИКА

1

21W-62-33201

VALVE ASS'Y,MULTI PATTERN

2

20U-62-23770

ELBOW

3

07002-11423

O-RING

4

07235-10210

ELBOW

5

07002-11423

O-RING

6

07230-20210

UNION

7

07002-11423

O-RING

8

20Y-62-22830

BAND¤ WHITE

9

20U-62-23550

BAND¤ ORANGE

10

20Y-62-22790

BAND¤ RED

11

20Y-62-22820

BAND¤ BLUE

12

20Y-62-22840

BAND¤ BLACK

13

20Y-62-22850

BAND¤ GREEN

14

20Y-62-22860

BAND¤ BROWN

15

20Y-62-22810

BAND¤ YELLOW

16

21X-62-22260

HOSE

17

20U-62-23421

HOSE

18

21W-62-33260

HOSE

19

09822-00010

PLATE¤ SAFETY,MULTIPLE PATTERN

20

09822-11200

PLATE¤ OPERATING,MULTIPLE PATTERN

|20

09822-A1110

PLATE¤ OPERATING,JIS AND OLD KOMATSU PATTERN

|20

09822-A1120

PLATE¤ OPERATING,OLD MITSUBISHI AND OLD SINKOU

|20

09822-00020

CASE¤ PLATE

21

01023-60314

SCREW

22

01580-10302

NUT

23

01010-81040

BOLT

24

01643-31032

WASHER

25

22F-98-11311

PLATE¤ CAUTION

26

20U-98-31160

PLATE,SHIFT PATTERN
