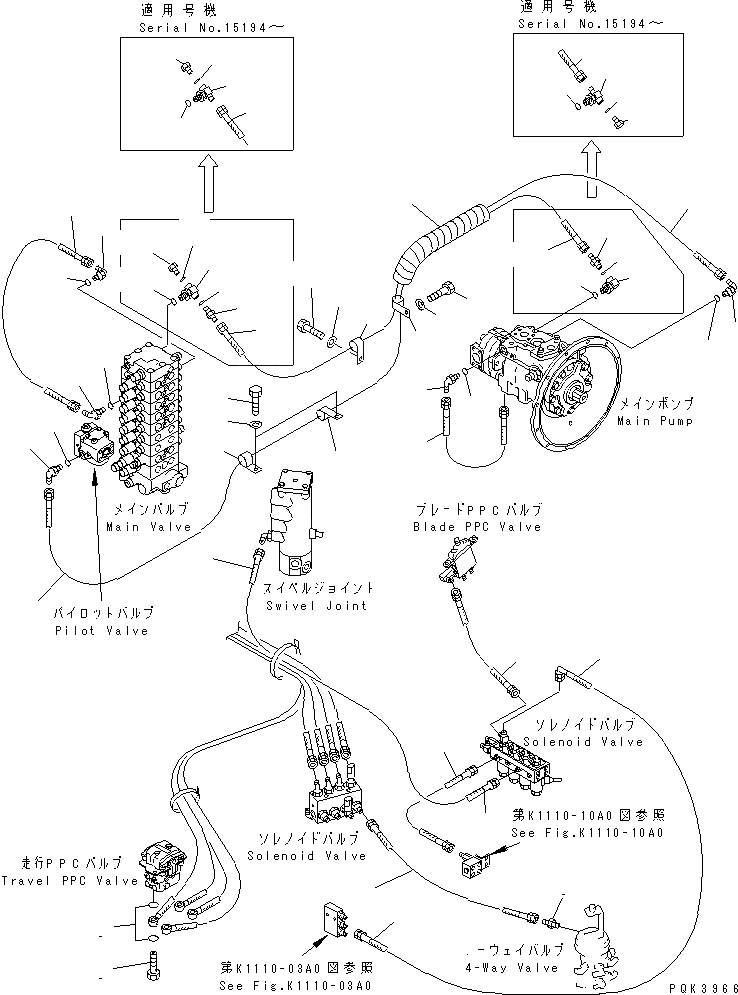

Запчасти Komatsu PC75UU-3 P.P.C. ОСНОВН. ЛИНИЯ (/) (MONO СТРЕЛА) (MULTIPLE PATTERN УПРАВЛ-Е) ГИДРАВЛИКА

1

201-62-74550

HOSE¤ 800MM,YELLOW-YELLOW

2

20T-62-81460

HOSE¤ 600MM,RED-YELLOW

3

21W-62-32880

HOSE¤ 700MM,RED-YELLOW

4

20U-62-23650

HOSE¤ 400MM,BLACK-BLUE

5

21W-62-32520

HOSE¤ 300MM,GREEN

6

20U-62-22180

NIPPLE

7

203-62-32440

COVER

8

20Y-62-16170

BOLT

9

07000-12015

O-RING

10

21W-62-31430

HOSE¤ 1700MM

|11

21W-62-31901

TEE ASS'Y

|11

21W-62-31900

TEE ASS'Y

11

21W-62-31872

TEE

|11

21W-62-31871

TEE

12

21W-62-31990

NIPPLE

13

07040-11007

PLUG

14

07002-11023

O-RING

|14

07002-11023

O-RING

15

07002-11423

O-RING

16

21W-62-31430

HOSE¤ 1700MM

17

21W-62-31420

HOSE¤ 650MM

18

07002-11423

O-RING

19

07235-10210

ELBOW

|20

21W-62-31901

TEE ASS'Y

|20

21W-62-31800

ELBOW ASS'Y

20

21W-62-31872

TEE

|20

21W-62-31881

ELBOW

21

07040-11007

PLUG

21A

21W-62-31990

NIPPLE

22

07002-11023

O-RING

23

04434-52712

CLIP

24

04434-51412

CLIP

25

01010-81020

BOLT

26

01643-31032

WASHER

27

07235-10210

ELBOW

28

07002-11423

O-RING

29

21W-62-32390

HOSE¤ 450MM
