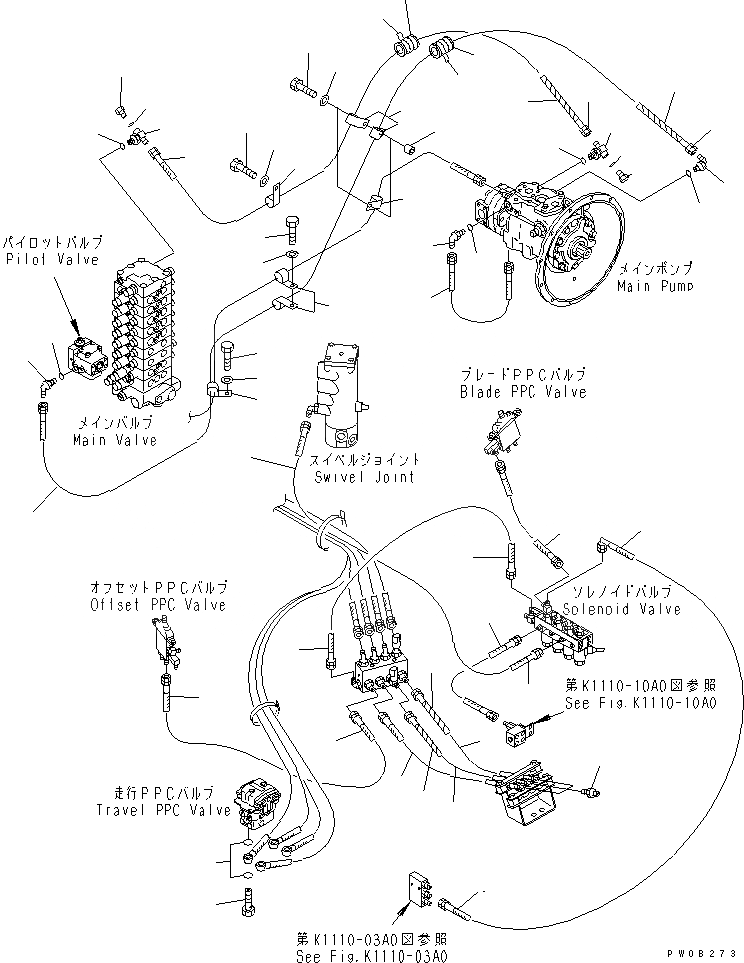

Запчасти Komatsu PC75UU-3 P.P.C. ОСНОВН. ЛИНИЯ (/)(№9-) ГИДРАВЛИКА

1

201-62-74550

HOSE¤ 800MM,YELLOW-YELLOW

2

20T-62-81460

HOSE¤ 600MM,RED-YELLOW

3

21W-62-32880

HOSE¤ 700MM,RED-YELLOW

4

20U-62-23650

HOSE¤ 400MM,BLACK-BLUE

5

21W-62-32860

HOSE¤ 250MM,WHITE-BLACK

6

21W-62-32860

HOSE¤ 250MM,BLACK

7

21W-62-32390

HOSE¤ 450MM,BLACK-BLUE

8

21W-62-32520

HOSE¤ 300MM,GREEN

9

21W-62-32520

HOSE¤ 300MM,YELLOW

10

20U-62-22180

NIPPLE

11

08210-01202

SPIRAL TUBE

12

20Y-62-16170

BOLT

13

07000-12015

O-RING

14

21W-62-31430

HOSE¤ 1700MM

15

08210-01207

SPIRAL TUBE

|16

21W-62-31901

TEE ASS'Y

16

21W-62-31872

TEE

17

07040-11007

PLUG

18

07002-11023

O-RING

19

07002-11423

O-RING

20

21W-62-31430

HOSE¤ 1700MM

21

08210-01207

SPIRAL TUBE

22

21W-62-33340

HOSE¤ 620MM

23

07002-11423

O-RING

24

07235-10210

ELBOW

|25

21W-62-31901

TEE ASS'Y

25

21W-62-31872

TEE

26

07040-11007

PLUG

27

07002-11023

O-RING

28

04434-52712

CLIP

29

04434-51412

CLIP

30

01010-81020

BOLT

31

01643-31032

WASHER

32

195-33-11220

SPACER

33

01010-81045

BOLT

34

07095-20213

CUSHION

35

08034-20823

BAND
