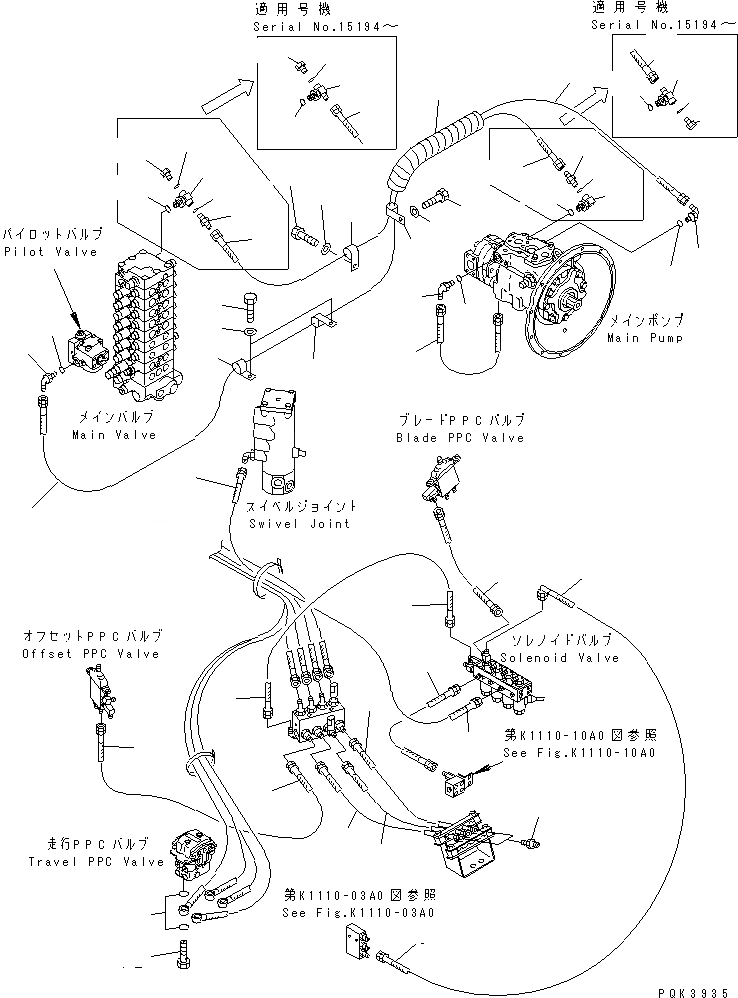

Запчасти Komatsu PC75UU-3 P.P.C. ОСНОВН. ЛИНИЯ (/)(№-9) ГИДРАВЛИКА

1

201-62-74550

HOSE¤ 800MM,YELLOW-YELLOW

2

20T-62-81460

HOSE¤ 600MM,RED-YELLOW

3

21W-62-32880

HOSE¤ 700MM,RED-YELLOW

4

20U-62-23650

HOSE¤ 400MM,BLACK-BLUE

5

21W-62-32860

HOSE¤ 250MM,WHITE-BLACK

6

21W-62-32860

HOSE¤ 250MM,BLACK

7

21W-62-32390

HOSE¤ 450MM,BLACK-BLUE

8

21W-62-32520

HOSE¤ 300MM,GREEN

9

21W-62-32520

HOSE¤ 300MM,YELLOW

10

20U-62-22180

NIPPLE

11

203-62-32440

COVER

12

20Y-62-16170

BOLT

13

07000-12015

O-RING

14

21W-62-31430

HOSE¤ 1700MM

|15

21W-62-31901

TEE ASS'Y

|15

21W-62-31900

TEE ASS'Y

15

21W-62-31872

TEE

|15

21W-62-31871

TEE

16

21W-62-31990

NIPPLE

17

07040-11007

PLUG

18

07002-11023

O-RING

|18

07002-11023

O-RING

19

07002-11423

O-RING

20

21W-62-31430

HOSE¤ 1700MM

21

21W-62-31420

HOSE¤ 650MM

22

07002-11423

O-RING

23

07235-10210

ELBOW

|24

21W-62-31901

TEE ASS'Y

|24

21W-62-31800

ELBOW ASS'Y

24

21W-62-31872

TEE

|24

21W-62-31881

ELBOW

25

21W-62-31990

NIPPLE

26

07040-11007

PLUG

27

07002-11023

O-RING

28

04434-52712

CLIP

29

04434-51412

CLIP

30

01010-81020

BOLT

31

01643-31032

WASHER
