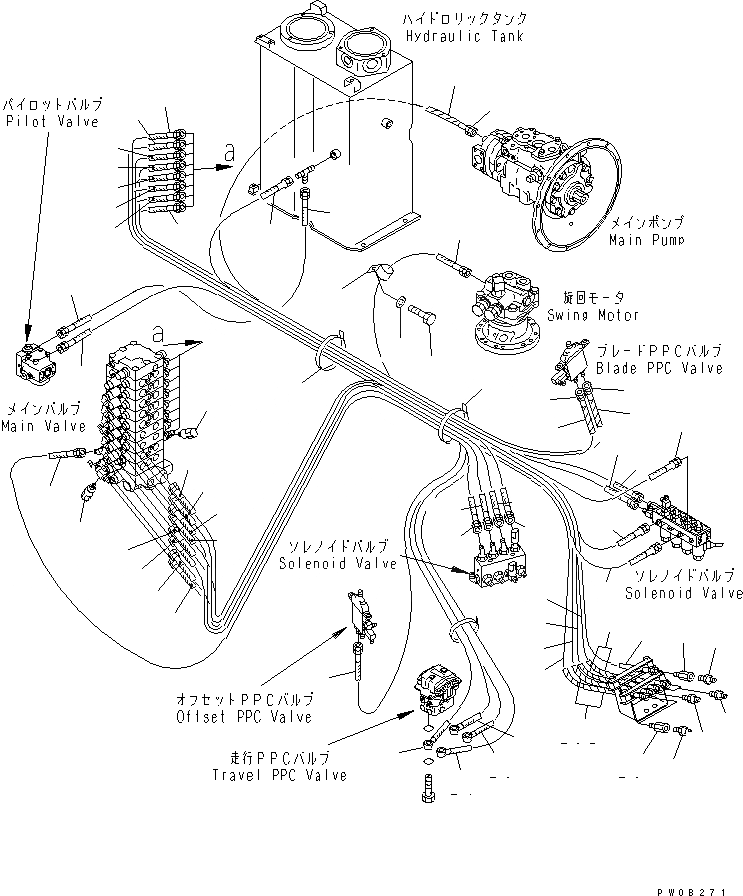

Запчасти Komatsu PC75UU-3 P.P.C. ОСНОВН. ЛИНИЯ (/) ГИДРАВЛИКА

1

08210-01208

SPIRAL TUBE

1A

21W-62-32210

HOSE¤ 1500MM,YELLOW

2

21W-62-32490

HOSE¤ 1700MM,BROWN

3

21W-62-32640

HOSE¤ 1800MM,YELLOW-BLUE

4

21W-62-32650

HOSE¤ 1900MM,GREEN-WHITE

5

21W-62-32660

HOSE¤ 2000MM,ORANGE

6

21W-62-32660

HOSE¤ 2000MM,RED

7

21W-62-32670

HOSE¤ 2200MM,WHITE-RED

8

20U-62-22180

NIPPLE

9

201-62-64680

NIPPLE

9A

08210-01202

SPIRAL TUBE

9B

08210-01208

SPIRAL TUBE

10

21W-62-31450

HOSE¤ 1600MM,YELLOW-RED

11

20S-62-83120

HOSE¤ 1100MM,BLACK-GREEN

12

21W-62-32490

HOSE¤ 1700MM,BLACK

13

21W-62-32640

HOSE¤ 1800MM,GREEN

14

21W-62-32650

HOSE¤ 1900MM,WHITE

15

21W-62-32650

HOSE¤ 1900MM,WHITE-BLACK

16

21W-62-32660

HOSE¤ 2000MM,RED-BLACK

17

21W-62-32670

HOSE¤ 2200MM,BLUE

18

21W-62-32690

HOSE¤ 2900MM,BLUE-WHITE

19

20U-62-22180

NIPPLE

20

201-62-64680

NIPPLE

20A

08210-01205

SPIRAL TUBE

20B

08210-01202

SPIRAL TUBE

21

206-06-61130

SWITCH

|21

20Y-06-21710

SWITCH

22

21W-62-32990

HOSE¤ 1400MM,BLACK-BLUE

23

21W-62-32210

HOSE¤ 1500MM,GREEN-RED

24

21W-62-32960

HOSE¤ 1900MM,ORANGE-YELLOW

25

21W-62-32960

HOSE¤ 1900MM,GREEN-YELLOW

26

21W-62-32960

HOSE¤ 1900MM,BROWN-YELLOW

27

21W-62-33110

HOSE¤ 1800MM,BLACK-YELLOW

28

08034-00519

BAND

29

08036-01414

CLIP

30

01010-81020

BOLT

31

01643-31032

WASHER
