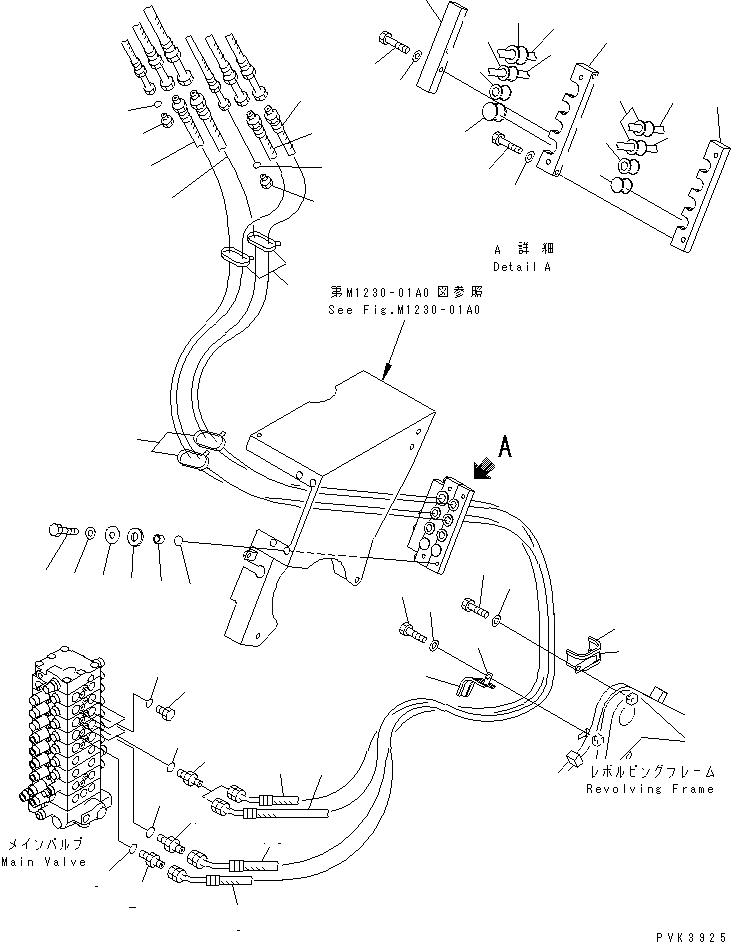

Запчасти Komatsu PC75UU-3 ЛИНИЯ АКТУАТОРА (КОВШ И РУКОЯТЬ) ГИДРАВЛИКА

1

07230-20522

UNION

2

203-62-56830

NIPPLE

3

07002-12434

O-RING

4

07230-20422

UNION

5

07002-12034

O-RING

6

07040-12012

PLUG

7

07002-12034

O-RING

8

21W-62-31560

HOSE¤ 2300MM,ORANGE

9

21W-62-31560

HOSE¤ 2300MM,BLUE

10

21W-62-31570

HOSE¤ 2300MM,GREEN

11

21W-62-31211

HOSE¤ 2400MM,RED

12

20U-62-22911

PLATE

13

21W-62-32930

PLATE

14

20U-62-22931

PLATE

15

21W-62-23110

WASHER

16

21W-62-22970

SHEET

17

21W-62-22810

SPACER

18

07000-02015

O-RING

19

01010-81040

BOLT

20

01643-31032

WASHER

21

01010-80860

BOLT

22

01643-30823

WASHER

23

07095-20420

CUSHION

24

07095-20523

CUSHION

25

20U-62-22940

CUSHION

26

20U-62-22940

CUSHION

27

20U-62-22460

CUSHION

28

08034-20519

BAND

29

21W-62-31731

BRACKET

30

21W-62-31860

CUSHION

31

01010-81220

BOLT

32

01643-31232

WASHER

33

21W-62-31742

BRACKET

34

21W-62-31980

CUSHION

35

01010-81220

BOLT

36

01643-31232

WASHER

37

07040-11812

PLUG

38

07002-11823

O-RING
