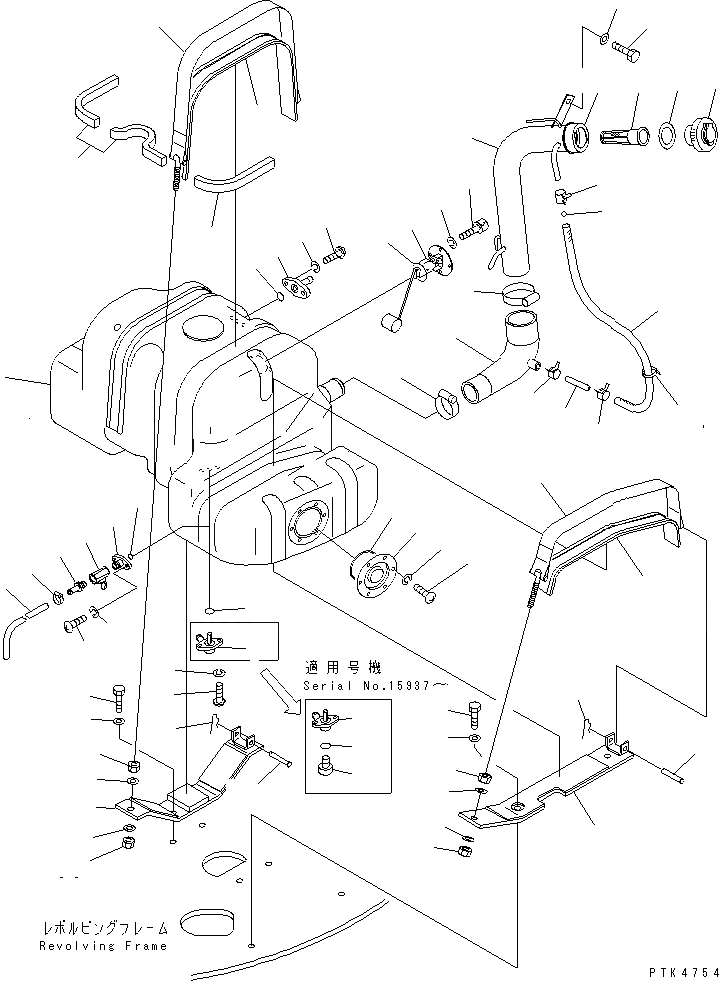

Запчасти Komatsu PC75UU-3 ТОПЛИВН. БАК. (БАК) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

20U-04-21112

TANK

2

20U-04-21530

FLANGE ASS'Y

|2

21Y-04-11381

FLANGE ASS'Y

2A

07040-10807

PLUG

2B

07002-10823

O-RING

3

01220-40616

SCREW

4

01602-20619

WASHER

5

07000-02015

O-RING

6

20U-04-21150

FLANGE

7

01220-40620

SCREW

8

01602-20619

WASHER

9

07000-02015

O-RING

|10

20U-04-00011

VALVE ASS'Y

|10

20U-04-00010

VALVE ASS'Y

10

FLANGE

|10

FLANGE

11

VALVE

|11

VALVE

12

NIPPLE

|12

NIPPLE

13

01220-40620

SCREW

14

01602-20619

WASHER

15

07000-02018

O-RING

|15

07000-02015

O-RING

16

07270-01245

TUBE

17

07285-00130

CLIP

|17

07280-01620

CLAMP

18

20U-04-21410

PLATE

19

07000-E2080

O-RING

20

01220-40612

SCREW

21

01602-20619

WASHER

22

7861-92-5820

SENSOR,FUEL

23

01252-40612

BOLT

24

01602-20619

WASHER

25

07000-13048

O-RING

|25

07000-03048

O-RING

26

20U-04-21181

BRACKET

27

21W-04-31220

BRACKET

28

01010-81230

BOLT

29

01643-31232

WASHER

30

20U-04-21221

BAND

31

20U-04-21210

CUSHION

32

20U-04-21280

BAND

33

20U-04-21290

CUSHION

34

20U-04-21240

PIN

35

04052-11038

PIN,COTTER

36

01580-11210

NUT

37

01643-31232

WASHER

38

21W-04-31113

FILLER

39

20M-04-71150

FILTER

40

01010-81020

BOLT

41

01643-31032

WASHER

42

20U-04-21361

CAP

|42

20U-04-21360

CAP

43

21W-04-31191

STRAINER

44

21W-04-31230

PLATE

45

21W-04-31260

HOSE

46

21W-04-31270

CONNECTOR

47

07281-00197

CLAMP

47A

08034-20536

BAND

|47A

08034-20536

BAND

48

07289-00070

CLAMP

|48

07281-00709

CLAMP

49

07289-00080

CLAMP

|49

07281-00909

CLAMP

50

20U-04-21320

TUBE

51

07285-00155

CLIP

52

201-04-21160

BALL

53

21W-04-31280

SHEET
