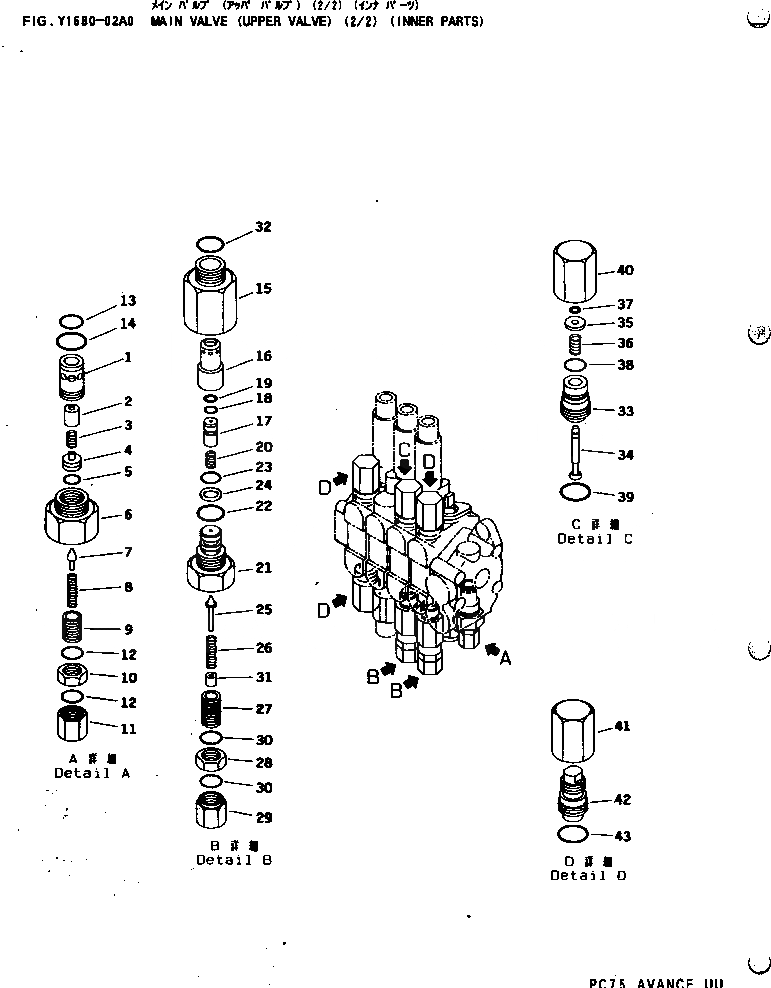

Запчасти Komatsu PC75UU-2E ОСНОВН. КЛАПАН (ВЕРХНИЙ КЛАПАН) (/) (ВНУТР. ЧАСТИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

21W-60-22120

VALVE ASS'Y

|1

NAD33316087823

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

POPPET

3

NAE574130025

SPRING

4

NAE114130026

SEAT

5

NAC01101010010

O-RING

6

RETAINER

7

NAD51090205004

POPPET

8

NAE574120838

SPRING

9

NAE12416087901

SCREW

10

NAE51414733901

NUT

11

NAE14414733801

NUT

12

NAE54414762001

O-RING

13

NAC03100001510

O-RING

14

NAC01100022010

O-RING

|15

NAD33417031603

VALVE ASS'Y,SAFETY AND SUCTION

15

RETAINER

16

SLEEVE

17

POPPET

18

O-RING

19

RING,BACK-UP

20

SPRING

21

SEAT

22

O-RING

23

O-RING

24

RING,BACK-UP

25

POPPET

26

SPRING

27

SCREW

28

NUT

29

NUT

30

O-RING

31

GUIDE

32

NAE54408521204

O-RING

|33

NAD33415911901

VALVE ASS'Y,SUCTION

33

SLEEVE

34

POPPET

35

NAE51414524401

SEAT

36

NAE57414524501

SPRING

37

NAB80000005001

RING,SNAP

38

NAC01100015010

O-RING

39

NAE54408521204

O-RING

40

NAD33415910901

NUT

|41

NAD33417057801

PLUG ASS'Y

41

NUT

42

PLUG

43

NAE54408521204

O-RING
