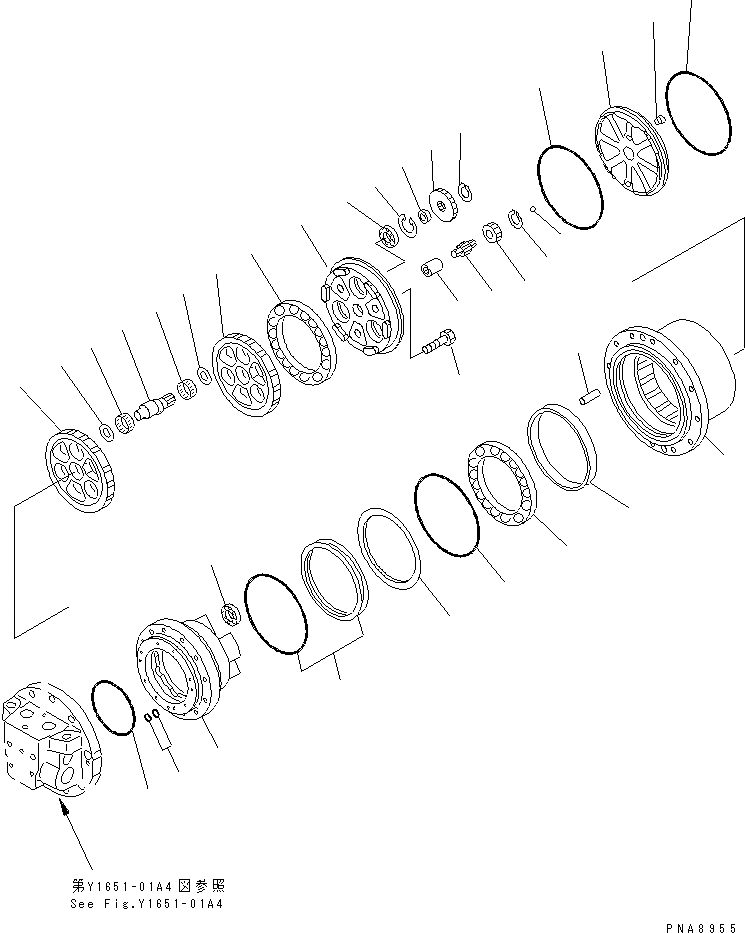

Запчасти Komatsu PC75UU-2 МОТОР ХОДА (/) (КОНЕЧНАЯ ПЕРЕДАЧА) (ВТОР. ХОД СПЕЦ-Я.)(№-7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

21W-60-22410

TRAVEL MOTOR ASS'Y

|1

TZ912B1000-00

FINAL DRIVE ASS'Y

1

TZ810B1001-00

HUB

|2

TZ910B1102-01

SPINDLE KIT

2

TZ910B1132-01

SPINDLE ASS'Y

3

TZ910B1019-01

BOLT,REAMER

|4

TZ192-230-30-B

FLOATING SEAL ASS'Y (K1)

4

TZES100-192-B

SEAL,FLOATING

5

TZ861A1010-00

PIECE,DISTANCE

6

07000-15230

O-RING (K1)

7

TZ810B1021-00

BEARING

|8

TZ910B1104-00

RV GEAR ASS'Y

8

TZ900B1204-00

RV GEAR (2 PIECES)

9

TZ910B1009-00

SHAFT,CRANK

10

TZ910B1012-00

SPACER

11

TZ910B1023-00

BEARING

12

TZ860A1022-00

BEARING

13

TZ860A1013-00

SNAP RING SET (12 KINDS)

14

TZ814B1107-00

SPUR GEAR KIT (3 PIECES)

15

TZ800B1014-00

PIECE,DISTANCE

16

04064-02512

RING,SNAP

17

TZ910B1016-00

SHAFT

18

04260-00952

BALL

19

TZ800A1015-00

JOINT

20

TZ814B1006-00

GEAR,INPUT

21

TZJB2804-S19

RING,SNAP

22

TZ810B1017-00

PIN

23

TZ810B1020-00

COLLAR

24

TZ810B1008-00

COVER

25

TZGM3-8

PLUG

26

TZJW1516-P74-9

O-RING (K1)

27

TZ810B1018-00

RING

28

07000-11007

O-RING (K1)

29

TZJW1516-G35-9

O-RING (K1)

K1

TZ910B9000-00

SEAL KIT

|30

TZSUN-3BG140

RING,BACK-UP

|30

07000-12140

O-RING

|30

TZJB1516-G28-9

O-RING

|30

TZSUN-3WG28

RING,BACK-UP

|30

TZ15Z-22-42-10

SEAL

|30

07000-11009

O-RING

|30

TZJB2401-P26-9

O-RING

|30

07000-12016

O-RING

|30

07002-02034

O-RING

|30

TZJB2401-P26-9

O-RING

|30

07000-12018

O-RING

|30

07000-11008

O-RING

|30

TZES100-192-B

SEAL

|30

07000-15230

O-RING

|30

TZJW1516-P74-9

O-RING

|30

07000-11007

O-RING

|30

TZJW1516-G35-9

O-RING
