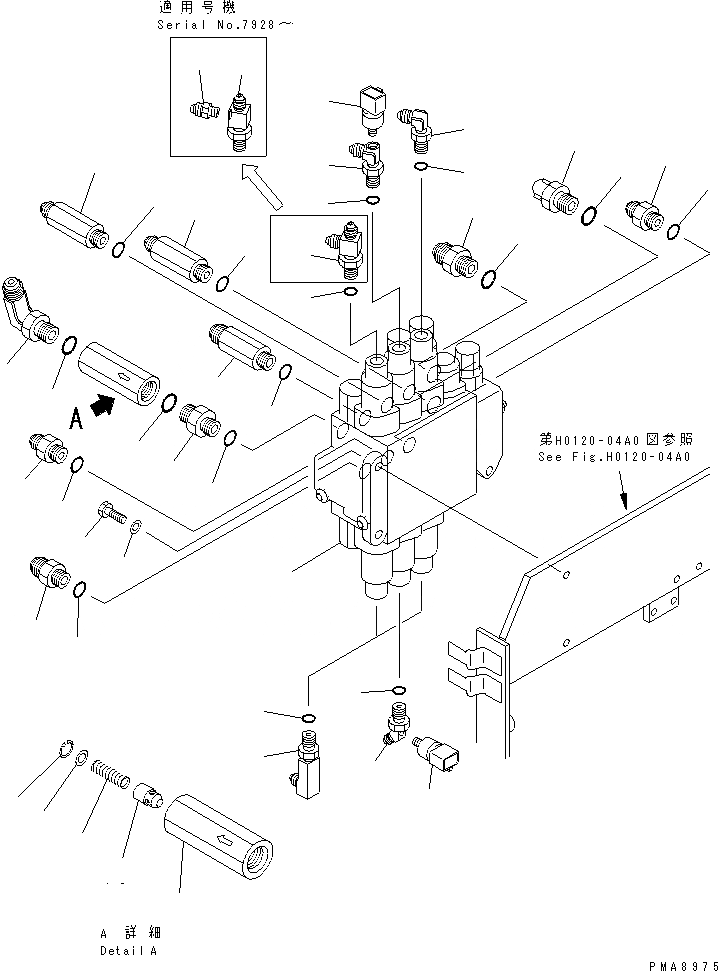

Запчасти Komatsu PC75UU-2 ОСНОВН. КЛАПАН (КРЕПЛЕНИЕ И ПАТРУБОК) (ДЛЯ ВЕРХНИЙ КЛАПАН) ГИДРАВЛИКА

1

21W-60-22120

VALVE ASS'Y,(SEE FIG.Y1680-01A0)

2

01010-50825

BOLT

2A

01643-30823

WASHER

3

07236-10422

ELBOW

4

07002-12034

O-RING

5

20T-62-71690

NIPPLE

6

07002-02034

O-RING

7

20T-62-71150

UNION

8

20T-62-71160

UNION

9

07002-11823

O-RING

10

20T-62-56710

UNION

11

20T-62-67150

UNION

12

07002-11823

O-RING

13

20T-62-56710

UNION

14

20T-62-67150

UNION

15

07002-11823

O-RING

|$18

205-60-64300

CHECK VALVE ASS'Y

16

04065-01410

RING,SNAP

17

205-60-64290

BODY

18

205-60-51390

POPPET

19

205-60-51410

SPRING

20

205-60-51420

SEAT

21

21X-62-12190

UNION

22

07002-11823

O-RING

23

07002-12034

O-RING

24

07235-10422

ELBOW

25

07002-12034

O-RING

26

21W-62-22980

TEE

26

208-62-17550

TEE

27

07235-50210

ELBOW

27

07235-50210

ELBOW

28

07235-10210

ELBOW

29

208-62-18190

ELBOW

30

07002-01423

O-RING

31

20Y-06-21710

SWITCH,PRESSURE (FOR SWING)

31

203-06-56121

SWITCH,PRESSURE (FOR SWING)

32

208-06-11220

NIPPLE

33

07236-50210

ELBOW
