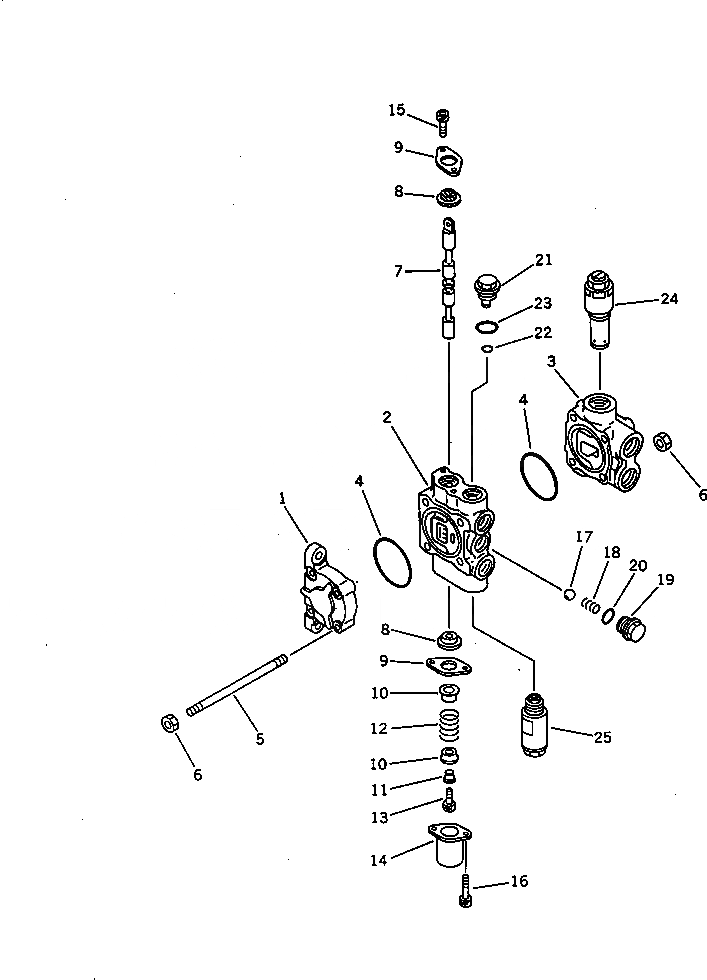

Запчасти Komatsu PC75UU-1 ОТВАЛ УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-31-11602

VALVE ASS'Y,BLADE

|1

709-31-11601

VALVE ASS'Y,BLADE

|1

709-31-11600

VALVE ASS'Y,BLADE

1

COVER

2

BLOCK

3

BLOCK

4

07000-12055

O-RING

5

709-31-11510

STUD

6

01580-10806

NUT

7

SPOOL

8

709-32-11530

SEAL,DUST

9

709-32-11540

PLATE

10

709-32-11550

RETAINER

11

709-32-11560

COLLAR

12

709-32-11590

SPRING

|12

709-32-11580

SPRING

13

01252-30620

BOLT

14

709-32-11570

COVER

15

01252-30610

BOLT

16

01252-30616

BOLT

17

04260-01270

BALL

18

709-32-11820

SPRING

19

709-32-11810

PLUG

20

07002-11823

O-RING

21

709-32-11830

PLUG

22

709-32-11840

O-RING

23

07002-02434

O-RING

24

700-28-55000

RELIEF VALVE ASS'Y

25

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY

|25

709-30-64100

VALVE ASS'Y,SUCTION AND SAFETY
