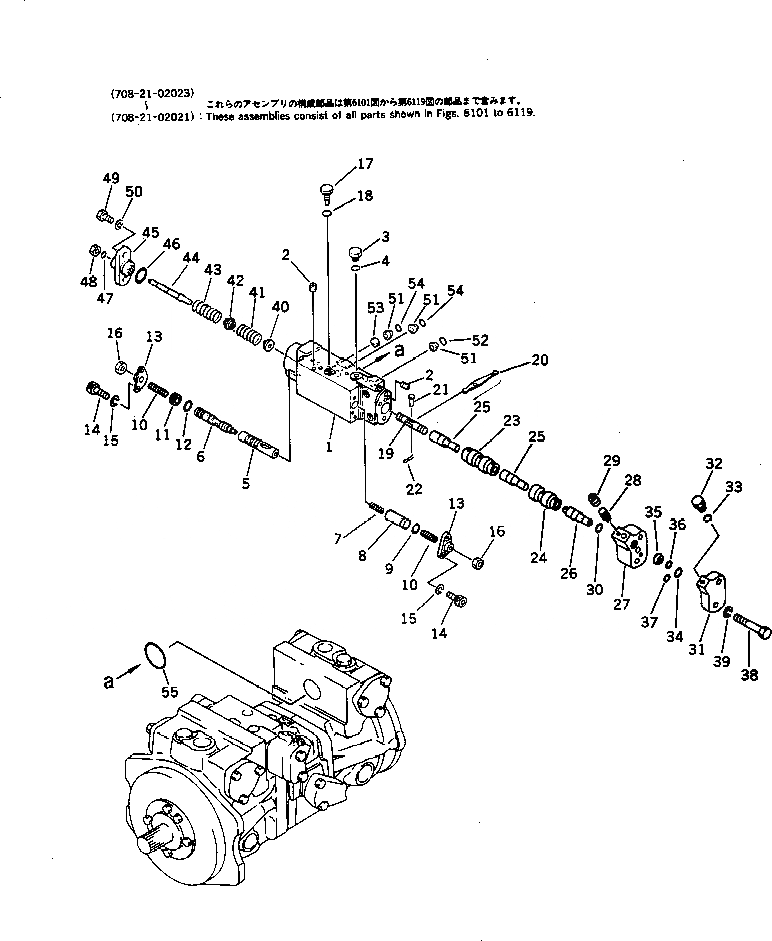

Запчасти Komatsu PC75UU-1 СЕРВОКЛАПАН¤ ЗАДН. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-21-02023
PUMP ASS'Y
|1
708-21-02022
PUMP ASS'Y
|1
708-21-02021
PUMP ASS'Y
|1
708-21-07941
SERVO VALVE ASS'Y,REAR
|1
708-23-07082
BODY ASS'Y,REAR
|1
708-23-07081
BODY ASS'Y,REAR
1
BODY
|1
BODY
2
PLUG
3
706-75-71420
PLUG
4
07002-10823
O-RING
5
708-25-15180
SLEEVE
6
708-25-15280
SPOOL
7
708-25-15310
SPRING
8
708-25-15330
SPACER
9
07000-02012
O-RING
10
708-25-15340
SCREW
11
708-25-15430
PLUG
12
07000-02012
O-RING
13
708-25-15250
COVER
14
708-25-15320
BOLT
15
01602-00619
WASHER,SPRING
16
01580-00806
NUT
17
708-25-15260
PLUG
18
07002-00823
O-RING
19
708-23-15820
PISTON
20
708-23-15910
ARM
21
04205-00514
PIN
22
04050-01210
PIN,COTTER
23
708-23-15921
SLEEVE
24
708-23-15941
SLEEVE
25
708-23-15930
PISTON
26
708-21-15270
PISTON
|27
708-21-08240
SLEEVE ASS'Y,REAR
27
SLEEVE,REAR
28
PLUG
29
720-68-19860
SCREW
30
07000-02014
O-RING
31
708-21-19270
COVER
32
706-75-71420
PLUG
33
07002-10823
O-RING
34
07000-01007
O-RING
35
720-68-11920
FILTER
36
07000-12010
O-RING
37
07000-12010
O-RING
38
01010-30870
BOLT
39
01602-00825
WASHER,SPRING
40
708-23-15830
SEAT
41
708-23-15840
SPRING
42
708-23-15850
SEAT
43
708-21-19221
SPRING
44
708-23-15870
ROD
45
708-21-19230
COVER
46
07000-02020
O-RING
47
07002-00823
O-RING
48
708-23-15890
NUT
49
01010-30820
BOLT
50
01602-00825
WASHER,SPRING
51
720-68-11920
FILTER
52
07000-12010
O-RING
53
708-21-19150
ORIFICE
54
07000-02010
O-RING
55
07000-03048
O-RING
Выбрано товаров: 63
