Запчасти Komatsu PC75UU-1 MACHINERY ОБСТАНОВКА (/) ЧАСТИ КОРПУСА

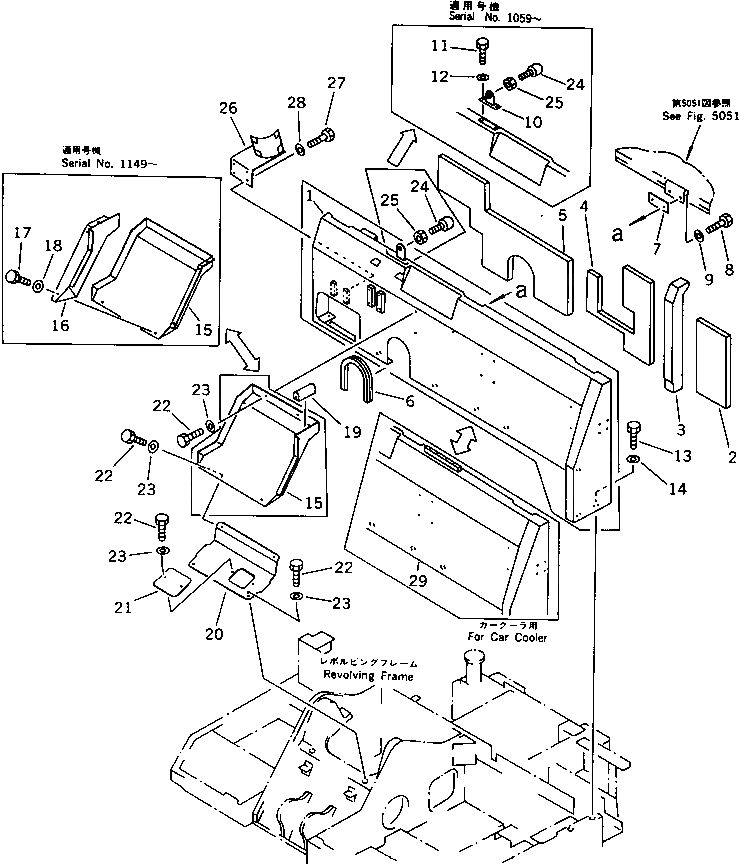

Схема запчастей Komatsu PC75UU-1 - MACHINERY ОБСТАНОВКА (/) ЧАСТИ КОРПУСА

Артикул

Название

Примечание

Количество

1

21W-54-11601

COVER ASS'Y

|1

21W-54-11600

COVER ASS'Y

2

21W-54-11670

SHEET

3

21W-54-11660

SHEET

4

21W-54-11620

SHEET

5

21W-54-11630

SHEET

6

21W-54-11640

SEAL

7

21W-54-11680

GASKET

8

01010-51030

BOLT

9

01643-31032

WASHER

10

21W-54-11691

BRACKET

|10

21W-54-11690

BRACKET

11

01010-51020

BOLT

12

01643-31032

WASHER

13

01010-51235

BOLT

|13

01010-51235

BOLT

14

01643-31232

WASHER

|14

01643-31232

WASHER

15

21W-54-11812

COVER

|15

21W-54-11811

COVER

|15

21W-54-11810

COVER

16

21W-54-11841

COVER

|16

21W-54-11840

COVER

17

01010-50816

BOLT

18

01643-30823

WASHER

19

09412-10005

SEAL

|19

09412-00005

SEAL

20

21W-54-11821

COVER

|20

21W-54-11820

COVER

21

21W-54-11591

COVER

|21

21W-54-11590

COVER

22

01010-50816

BOLT

23

01643-30823

WASHER

24

21W-54-14890

STOPPER

|24

09453-00002

STOPPER

25

01580-11210

NUT

26

21W-54-11710

BRACKET

27

01010-51020

BOLT

28

01643-31032

WASHER

G-1

21W-978-X161

COMPRESSOR MOUNT G.,(FOR CAR COOLER) (OP)

G-1

21W-978-X160

COMPRESSOR MOUNT G.,(FOR CAR COOLER) (OP)

29

21W-978-1611

COVER

|29

21W-978-1610

COVER

Выбрано товаров: 43
