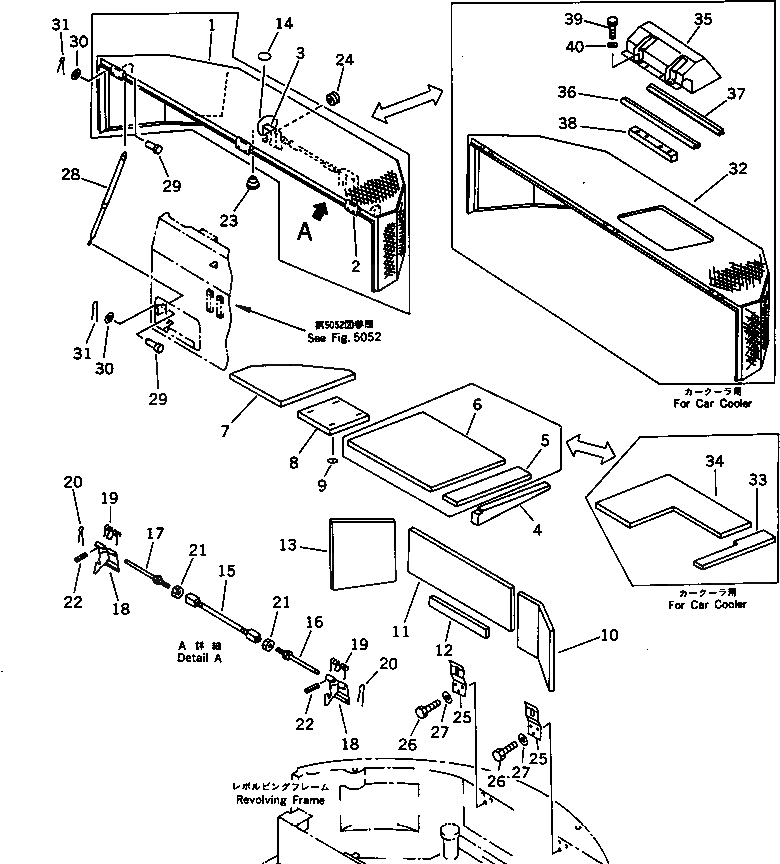

Запчасти Komatsu PC75UU-1 MACHINERY ОБСТАНОВКА (/) ЧАСТИ КОРПУСА

1

21W-54-11101

HOOD ASS'Y

|1

21W-54-11100

HOOD ASS'Y

2

21X-54-11261

HINGE (WELDED)

|2

21X-54-11260

HINGE (WELDED)

|2

20S-54-31160

HINGE (WELDED)

|2

20R-54-21372

HINGE (WELDED)

3

21W-54-11260

COVER (WELDED)

4

21W-54-11190

SHEET

5

21W-54-11150

SHEET

6

21W-54-11140

SHEET

7

21W-54-11160

SHEET

8

21W-54-11220

SHEET

9

04431-30000

PLATE

10

21W-54-11180

SHEET

11

21W-54-11120

SHEET

12

21W-54-11130

SHEET

13

21W-54-11170

SHEET

14

205-00-63770

PLATE

15

21W-54-11240

ROD

16

21W-54-11230

PIN

17

21W-54-11350

PIN

18

21W-54-11271

LEVER

|18

21W-54-11270

LEVER

19

20T-54-26430

SPRING

20

04050-13018

PIN,COTTER

21

01580-11008

NUT

22

04025-00312

PIN,SPRING

23

203-54-32260

STOPPER

24

09415-02110

CAP

25

21W-54-11250

LOCK

26

01010-51025

BOLT

27

01643-31032

WASHER

28

21W-54-11431

SPRING,GAS

|28

21W-54-11430

SPRING,GAS

29

04205-10828

PIN

30

01641-20812

WASHER

31

04050-12015

PIN,COTTER

G-1

21W-978-X161

COMPRESSOR MOUNT G.,(FOR CAR COOLER) (OP)

G-1

21W-978-X160

COMPRESSOR MOUNT G.,(FOR CAR COOLER) (OP)

32

21W-978-1511

HOOD

|32

21W-978-1510

HOOD

33

21W-978-1530

SHEET

34

21W-978-1520

SHEET

35

21W-978-1541

COVER

|35

21W-978-1540

COVER

36

09412-00004

SEAL

37

09412-10009

SEAL

38

21W-978-1621

SPACER

|38

21W-978-1620

SPACER

39

01010-51045

BOLT

40

01643-31032

WASHER
