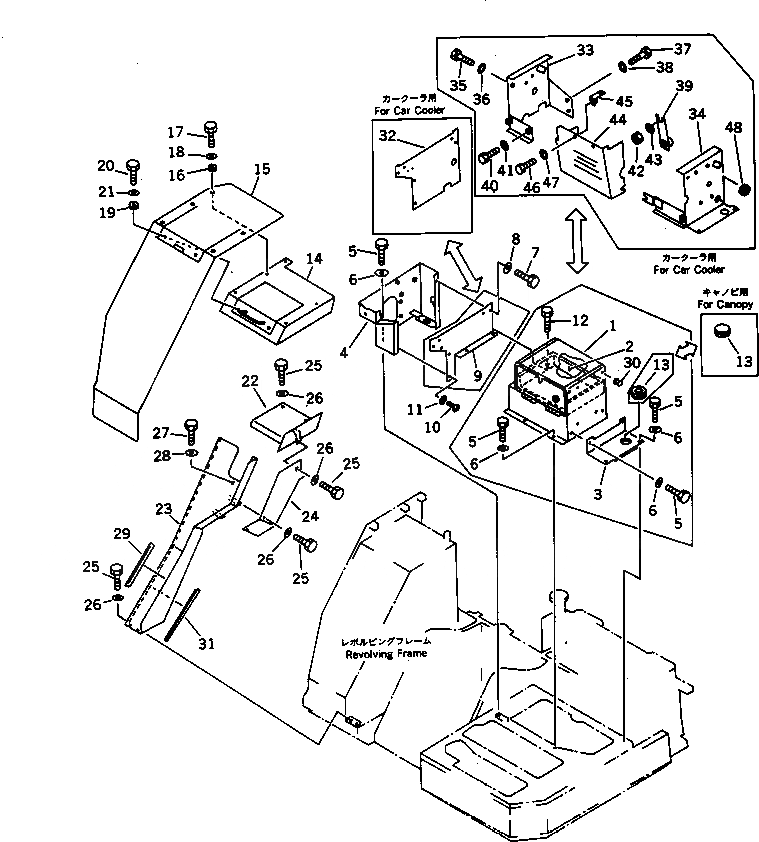

Запчасти Komatsu PC75UU-1 ПОЛ (/)(№8-) ЧАСТИ КОРПУСА

1

21W-54-13182

BOX,TOOL

2

20U-54-13580

SHEET

|2

20T-54-42130

SHEET

3

21W-54-13171

COVER

4

21W-54-13193

BOX,PANEL

5

01010-51025

BOLT

6

01643-31032

WASHER

7

01010-50820

BOLT

8

01643-30823

WASHER

9

21W-54-13212

COVER

10

01220-40816

SCREW

11

01643-30823

WASHER

12

01439-01020

BOLT

13

08037-05016

GROMMET

|13

09415-05016

CAP,(FOR CANOPY)

14

21W-54-11581

COVER

15

21W-54-11571

COVER

16

20U-54-11581

COLLAR

17

01010-51020

BOLT

18

01643-31032

WASHER

19

20U-54-11651

COLLAR

20

01010-50616

BOLT

21

01643-30623

WASHER

22

21W-54-11531

COVER

23

21W-54-11541

COVER

24

21W-54-11551

PLATE

25

01010-51020

BOLT

26

01643-31032

WASHER

27

01010-50816

BOLT

28

20U-54-11591

WASHER

29

21W-54-11560

SEAL

30

21X-54-11840

PLUG,(FOR CANOPY)

31

21W-54-11850

SEAL

G-1

21W-978-X131

CAB COVER GROUP,(FOR CAR COOLER) (OP)

32

21W-978-1141

COVER

33

21W-978-1131

COVER

34

21W-978-1121

COVER

35

01010-51020

BOLT

36

01643-31032

WASHER

37

01010-51025

BOLT

38

01643-31032

WASHER

39

21W-978-1111

BRACKET

40

01010-51045

BOLT

41

01643-31032

WASHER

42

01580-10806

NUT

43

01643-30823

WASHER

44

21W-978-1191

COVER

45

21W-978-1291

BRACKET

46

01010-51020

BOLT

47

01643-31032

WASHER

48

08037-03614

GROMMET
