Запчасти Komatsu PC75UU-1 ПОЛ (/)(№-79) ЧАСТИ КОРПУСА

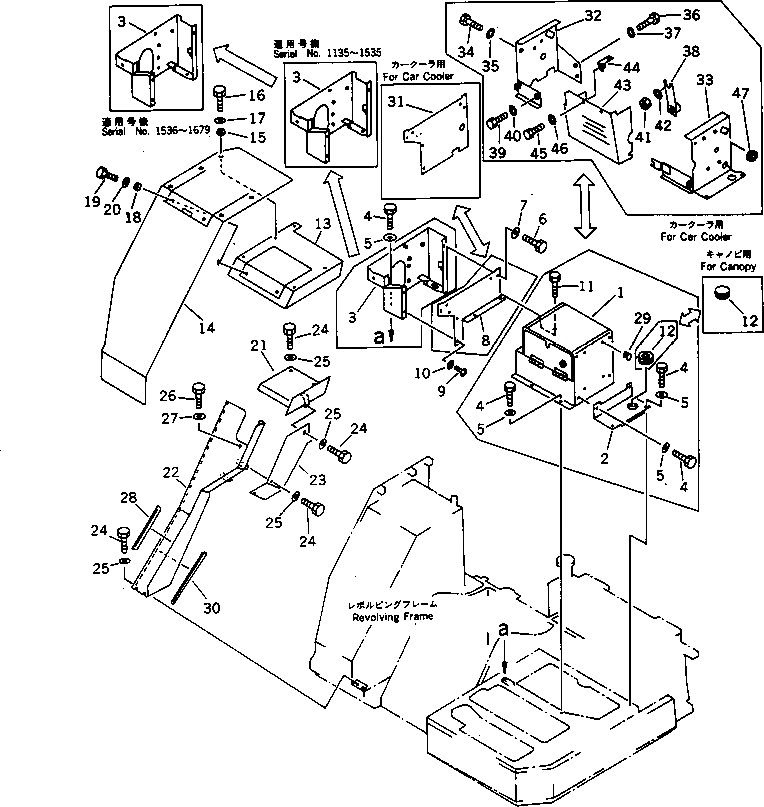

Схема запчастей Komatsu PC75UU-1 - ПОЛ (/)(№-79) ЧАСТИ КОРПУСА

Артикул

Название

Примечание

Количество

1

21W-54-13181

BOX,TOOL

|1

21W-54-13180

BOX,TOOL

2

21W-54-13170

COVER

3

21W-54-13192

BOX,PANEL

|3

21W-54-13191

BOX,PANEL

|3

21W-54-13190

BOX,PANEL

4

01010-51025

BOLT

5

01643-31032

WASHER

6

01010-50820

BOLT

7

01643-30823

WASHER

8

21W-54-13211

COVER

|8

21W-54-13210

COVER

9

01220-40816

SCREW

|9

01220-40816

SCREW

10

01643-30823

WASHER

|10

01643-30823

WASHER

11

01439-01020

BOLT

12

08037-05016

GROMMET

|12

09415-05016

CAP,(FOR CANOPY)

13

21W-54-11580

COVER

14

21W-54-11570

COVER

15

20U-54-11580

COLLAR

16

01010-51020

BOLT

17

01643-31032

WASHER

18

20U-54-11650

COLLAR

19

01010-50616

BOLT

20

01643-30623

WASHER

21

21W-54-11530

COVER

22

21W-54-11540

COVER

23

21W-54-11550

PLATE

24

01010-51020

BOLT

25

01643-31032

WASHER

26

01010-50816

BOLT

27

20U-54-11590

WASHER

28

21W-54-11560

SEAL

29

21X-54-11840

PLUG,(FOR CANOPY)

30

21W-54-11850

SEAL

|30

09412-00014

SEAL

G-1

21W-978-X130

CAB COVER GROUP,(FOR CAR COOLER) (OP)

31

21W-978-1140

COVER

32

21W-978-1130

COVER

33

21W-978-1120

COVER

34

01010-51020

BOLT

35

01643-31032

WASHER

36

01010-51025

BOLT

37

01643-31032

WASHER

38

21W-978-1110

BRACKET

39

01010-51045

BOLT

40

01643-31032

WASHER

41

01580-10806

NUT

42

01643-30823

WASHER

43

21W-978-1190

COVER

44

21W-978-1290

BRACKET

45

01010-51020

BOLT

46

01643-31032

WASHER

47

08037-03614

GROMMET

Выбрано товаров: 56
