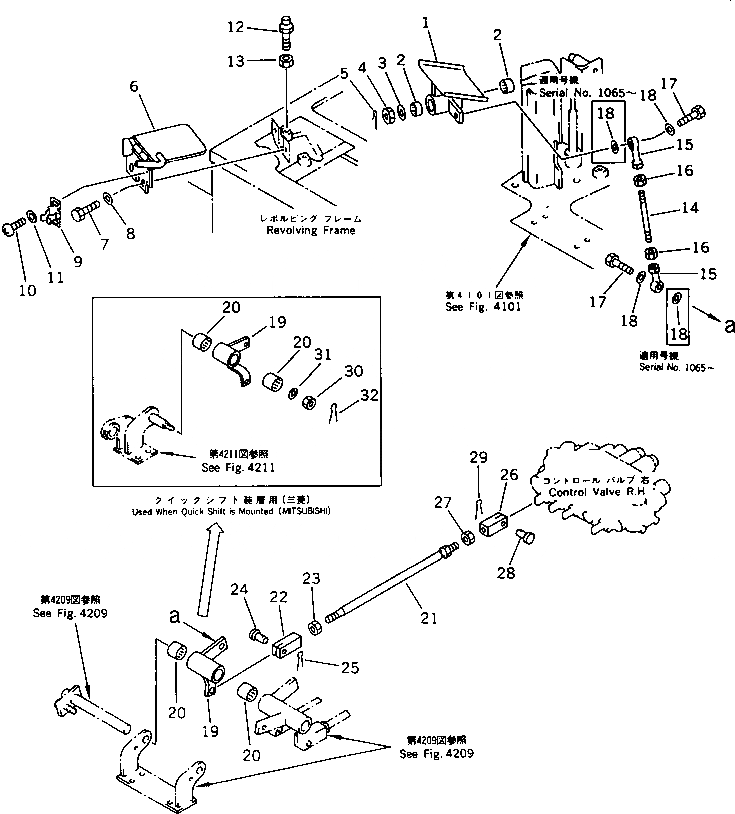

Запчасти Komatsu PC75UU-1 СТРЕЛА OFFSET ПЕДАЛЬ УПРАВЛ-Я И МЕХАНИЗМ СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20U-43-11532

PEDAL

|1

20U-43-11531

PEDAL

2

195-61-34130

BEARING

3

01643-31445

WASHER

4

01592-11215

NUT

5

04050-13022

PIN,COTTER

6

21W-43-11411

COVER

|6

21W-43-11410

COVER

7

01010-51025

BOLT

8

01643-31032

WASHER

9

20B-54-12210

SPRING

10

01220-40410

SCREW

11

01641-20405

WASHER

12

09311-41237

BUMPER

13

01580-11210

NUT

14

04245-41016

ROD

15

04250-41056

END,ROD

16

01582-11008

NUT

17

01010-51030

BOLT

|17

01010-51025

BOLT

18

01643-31032

WASHER

|18

01643-31032

WASHER

19

21W-43-11260

LEVER

|19

21W-43-13170

LEVER,(FOR QUICK SHIFT) (MITSUBISHI)

20

195-61-34130

BEARING

21

21W-43-11340

ROD

22

20S-43-12150

YOKE,L.H. THREAD

23

01508-41006

NUT,L.H. THREAD

|23

01508-21006

NUT,L.H. THREAD

24

04205-10822

PIN

25

04050-12015

PIN,COTTER

26

201-43-21370

YOKE

27

01582-11008

NUT

28

04205-10622

PIN

29

04050-11612

PIN,COTTER

30

01592-11215

NUT,(FOR QUICK SHIFT) (MITSUBISHI)

31

01643-31445

WASHER,(FOR QUICK SHIFT) (MITSUBISHI)

32

04050-13022

PIN,(FOR QUICK SHIFT) (MITSUBISHI)
