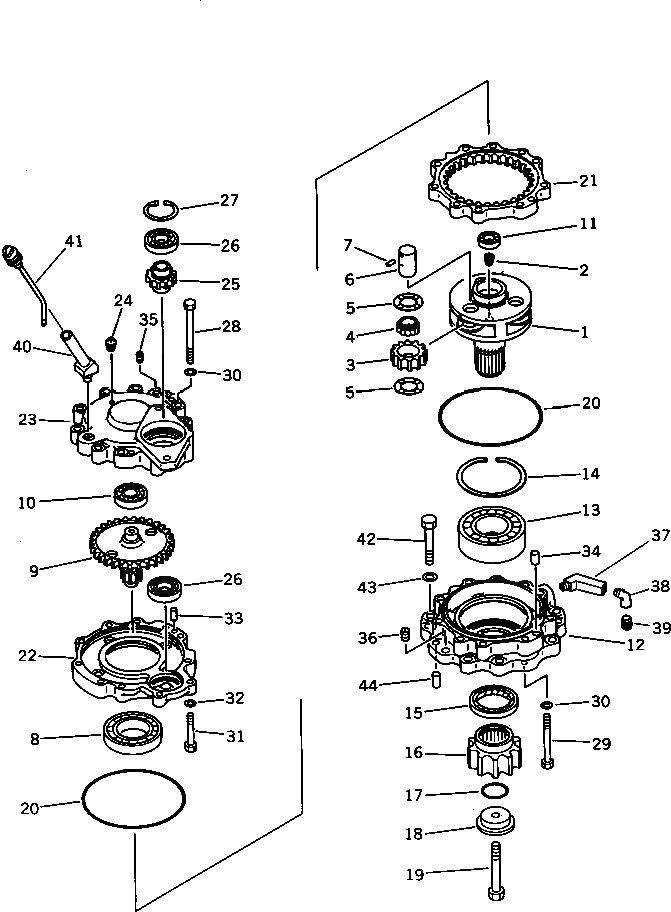

Запчасти Komatsu PC75UU-1 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. СИСТЕМА

|1

21W-26-00010

SWING MACHINERY A.

1

20X-26-21210

CARRIER

2

07043-00312

PLUG

3

20X-26-21220

GEAR

4

20X-26-21240

BEARING

5

20X-26-21250

WASHER

6

20X-26-21230

SHAFT

7

04025-00632

PIN,SPRING

8

06043-00215

BEARING

9

20X-26-21160

GEAR

10

06040-06306

BEARING

11

06040-06906

BEARING

12

20X-26-21110

CAGE

13

06030-22314

BEARING

14

04071-00150

RING,SNAP

15

07012-00085

SEAL,OIL

16

20X-26-21350

GEAR

17

07000-05055

O-RING

18

20X-26-21280

HOLDER

19

01011-51600

BOLT

20

20X-26-21190

O-RING

21

20X-26-21180

GEAR

22

20X-26-21120

CASE

23

20X-26-21130

COVER

24

07042-30108

PLUG

25

20X-26-21150

GEAR

26

06040-06207

BEARING

27

04065-07225

RING,SNAP

28

01011-51235

BOLT

29

01011-51205

BOLT

30

01643-31232

WASHER

31

01010-51255

BOLT

32

01643-31232

WASHER

33

04020-01024

PIN,DOWEL

34

04020-01434

PIN,DOWEL

35

07049-01215

PLUG

36

07049-01620

PLUG

37

21W-26-11130

ELBOW

38

07323-30600

ELBOW

39

07042-30617

PLUG

40

21W-26-11111

FILLER

41

21W-26-11121

GAUGE

42

01010-51655

BOLT

43

01643-31645

WASHER

44

04020-01638

PIN,DOWEL
