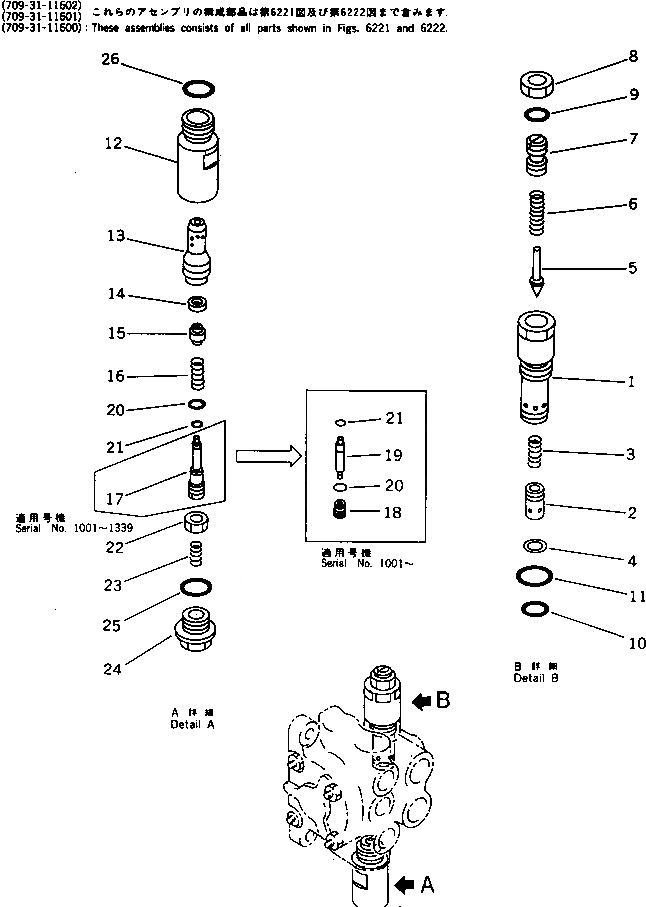

Запчасти Komatsu PC75UU-1 ОТВАЛ УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-31-11602

VALVE ASS'Y,BLADE

|1

709-31-11601

VALVE ASS'Y,BLADE

|1

709-31-11600

VALVE ASS'Y,BLADE

|1

700-28-55000

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY

|12

709-30-64100

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

|13

VALVE

14

SEAL

15

POPPET

|15

POPPET

16

SPRING

17

PISTON

18

SCREW

19

PISTON

20

O-RING

21

SEAL

22

NUT

23

700-20-62170

SPRING

24

709-30-62150

PLUG

25

07002-12034

O-RING

26

07002-02034

O-RING
