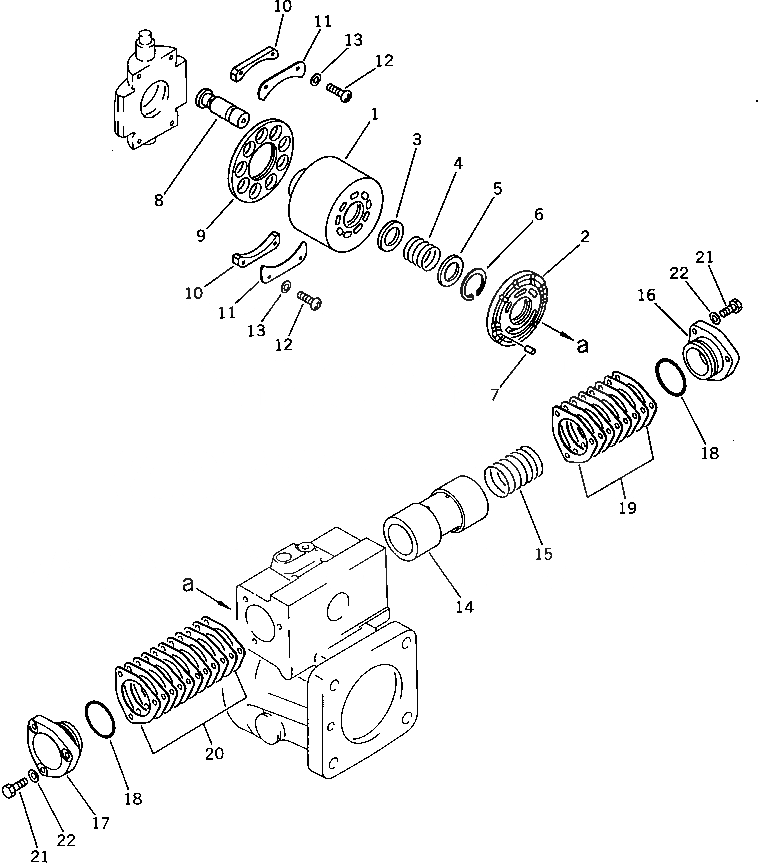

Запчасти Komatsu PC75UU-1 ГИДР. НАСОС.¤ ЗАДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-21-02023

PUMP ASS'Y

|$1

708-21-02022

PUMP ASS'Y

|$2

708-21-02021

PUMP ASS'Y

|$3

708-21-01222

PUMP SUB ASS'Y

|$4

708-21-01221

PUMP SUB ASS'Y

|$5

708-21-01220

PUMP SUB ASS'Y

|$6

708-21-00091

BLOCK ASS'Y

|$7

708-21-00090

BLOCK ASS'Y

|$8

708-21-00070

BLOCK ASS'Y

1

708-21-13160

BLOCK,CYLINDER

2

708-21-13621

PLATE,VALVE

2

708-21-13620

PLATE,VALVE

2

708-21-13230

PLATE,VALVE

3

708-21-13130

WASHER

4

708-21-13140

SPRING

5

708-21-13120

WASHER

6

708-21-13150

RING

7

720-68-19610

PIN

8

708-21-13352

PISTON SUB ASS'Y

9

708-21-13340

RETAINER,SHOE

10

708-21-05020

SPACER KIT

10

SPACER

10

SPACER

10

SPACER

11

708-21-13450

RETAINER,BEARING

12

708-23-13460

SCREW

13

01643-30623

WASHER

14

708-21-14111

PISTON

15

708-21-14130

SPRING

16

708-21-14140

CAP

17

708-21-14150

CAP

18

07000-03045

O-RING

19

708-21-05030

SHIM KIT

19

SHIM

19

SHIM

19

SHIM

19

SHIM

20

708-21-05040

SHIM KIT

20

SHIM

20

SHIM

20

SHIM

20

SHIM

21

01010-30835

BOLT

22

01643-30823

WASHER
