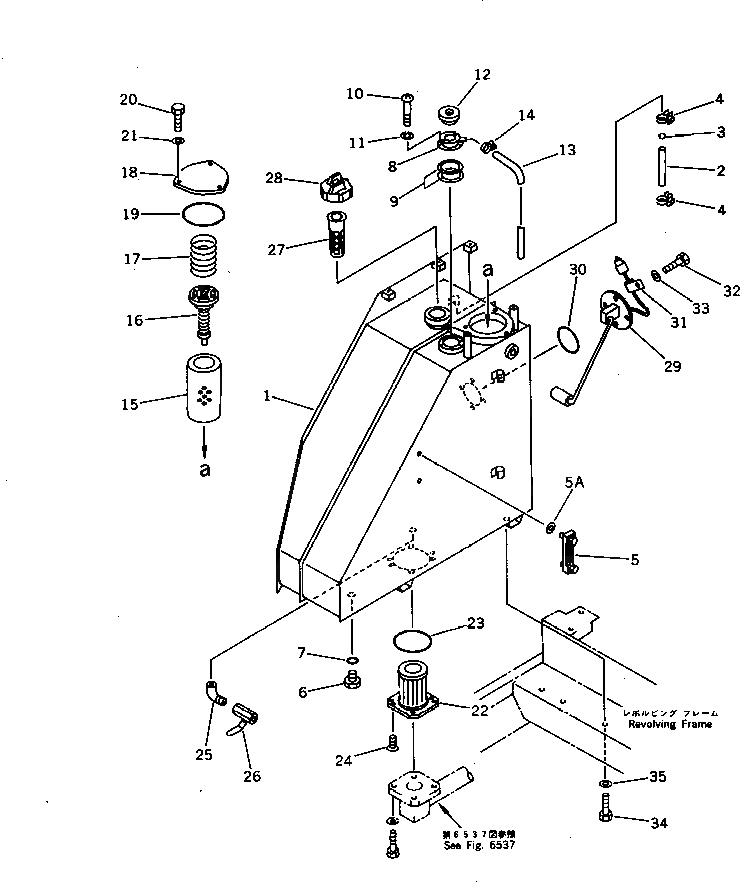

Запчасти Komatsu PC75UU-1 ГИДРАВЛ И ТОПЛИВН. БАК. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

21W-60-00011

TANK ASS'Y

|$1

21W-60-00010

TANK ASS'Y

1

TANK

1

TANK

2

203-60-42180

TUBE

3

201-04-21160

BALL,FLOAT

4

07285-00155

CLIP

4

07281-00197

CLAMP

5

20U-60-11162

GAUGE

5

20U-60-11161

GAUGE

5A

20U-60-11180

GASKET

6

07044-12412

PLUG

7

07002-02434

O-RING

8

201-60-12171

FILLER NECK

9

205-60-51460

GASKET

10

01220-40516

SCREW

11

01601-20513

WASHER,SPRING

12

201-60-12190

CAP ASS'Y

13

203-60-12170

TUBE

14

07280-01110

CLAMP

15

154-60-12170

ELEMENT

16

125-62-21150

VALVE ASS'Y

17

20X-60-22140

SPRING

18

21W-60-12151

COVER

18

21W-60-12150

COVER

19

07000-02135

O-RING

20

01010-51025

BOLT

21

01643-31032

WASHER

22

201-60-62171

STRAINER

23

07000-02115

O-RING

24

01224-40616

SCREW

25

07323-30200

ELBOW

26

07700-40240

VALVE

27

07056-16415

STRAINER

28

07050-20900

CAP

28

07050-20902

GASKET

29

7861-91-4800

SENSOR,FUEL LEVEL

30

07000-02085

O-RING

31

08036-21814

CLIP

32

01010-51016

BOLT

33

01643-31032

WASHER

34

01010-51230

BOLT

35

01643-31232

WASHER
