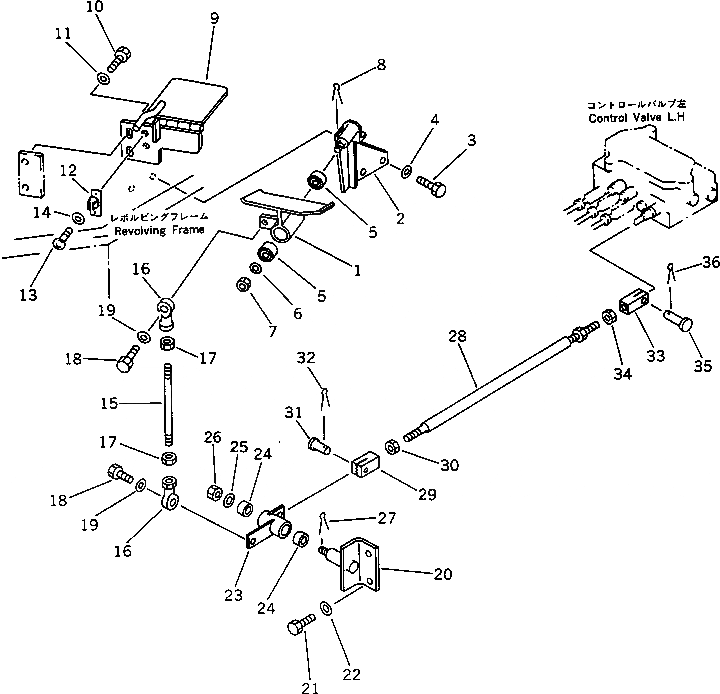

Запчасти Komatsu PC75UU-1 ПЕДАЛЬ УПРАВЛ-Я РАБОЧ. ОБОРУД. И МЕХАНИЗМ СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

G-1

21W-973-X150

CONTROL GROUP,(FOR ATTACHMENT) (OP)

1

21W-973-1510

PEDAL

2

21W-973-1530

SHAFT

3

01010-51235

BOLT

4

01643-31232

WASHER

5

195-61-34130

BEARING,NEEDLE

6

01643-31445

WASHER

7

01592-11215

NUT

8

04050-13022

PIN

9

21W-973-1520

COVER

10

01010-51025

BOLT

11

01643-31032

WASHER

12

20B-54-12210

SPRING

13

01220-40410

SCREW

14

01641-20405

WASHER

15

04245-41017

ROD

16

04250-41056

END

17

01582-11008

NUT

18

01010-51030

BOLT

19

01643-31032

WASHER

20

21W-973-1540

SHAFT

21

01010-51230

BOLT

22

01643-31232

WASHER

23

21W-973-1550

LEVER

24

195-61-34130

BEARING,NEEDLE

25

01643-31445

WASHER

26

01592-11215

NUT

27

04050-13020

PIN,COTTER

28

21W-973-1560

ROD

29

20S-43-12150

YOKE,L.H. THREAD

30

01508-41006

NUT,L.H. THREAD

31

04205-10822

PIN

32

04050-12012

PIN,COTTER

33

201-43-21370

YOKE

34

01582-11008

NUT

35

04205-10622

PIN

36

04050-11612

PIN,COTTER
