Запчасти Komatsu PC75UU-1 МОТОР ПОВОРОТА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

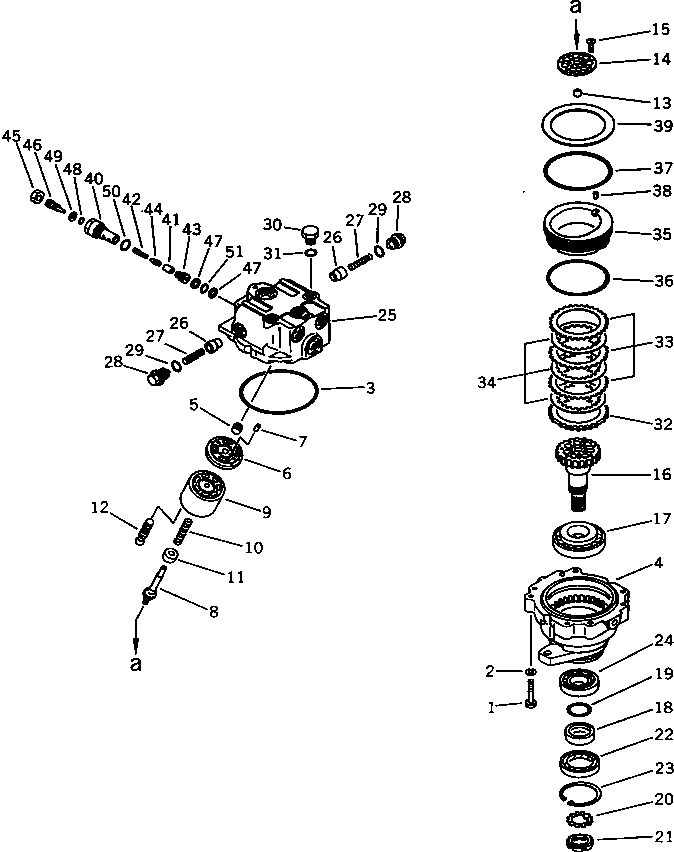

Схема запчастей Komatsu PC75UU-1 - МОТОР ПОВОРОТА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

706-73-01061

SWING MOTOR ASS'Y

|$1

706-73-01060

SWING MOTOR ASS'Y

1

01010-51055

BOLT

2

01602-21030

WASHER,SPRING

3

706-73-42370

O-RING

4

706-73-42030

CASE

5

706-73-40010

BEARING

6

706-73-42840

PLATE

7

04020-00616

PIN,DOWEL

8

706-73-42080

SHAFT,CENTER

9

706-73-41091

BLOCK,CYLINDER

10

706-73-41110

SPRING

11

706-73-41130

RING,CENTER

12

706-73-41164

PISTON ASS'Y

12

706-73-41163

PISTON ASS'Y

13

706-73-41220

BALL,CENTER

14

706-73-42260

RETAINER

15

706-73-42270

SCREW

16

706-73-42762

SHAFT,DRIVE

16

706-73-42761

SHAFT,DRIVE

17

706-74-41880

BEARING

18

706-75-40910

RING

19

07000-03040

O-RING

20

01658-03618

WASHER,LOCK

21

01530-03610

NUT,LOCK

22

706-75-90180

SEAL,OIL

23

04065-08225

RING,SNAP

24

706-75-40890

BEARING

25

706-73-72140

HOUSING

26

706-73-72420

VALVE

27

706-73-72440

SPRING

28

706-73-72430

PLUG

29

07002-12434

O-RING

30

07040-12012

PLUG

31

07002-12034

O-RING

32

706-73-91430

PLATE

33

706-73-91440

PLATE

34

706-75-90050

DISK

35

706-73-91481

PISTON,BRAKE

36

07000-15130

O-RING

37

07000-15145

O-RING

38

706-73-42820

PIN,DOWEL

39

706-73-91350

SPRING

|$43

702-73-01100

VALVE ASS'Y,RELIEF

40

SLEEVE

41

VALVE

42

SPRING

43

SEAT,VALVE

44

PISTON

45

NUT

46

SCREW

47

07001-02016

RING,BACK-UP

48

O-RING

49

RING,BACK-UP

50

07002-12434

O-RING

51

07000-22016

O-RING

Выбрано товаров: 56
