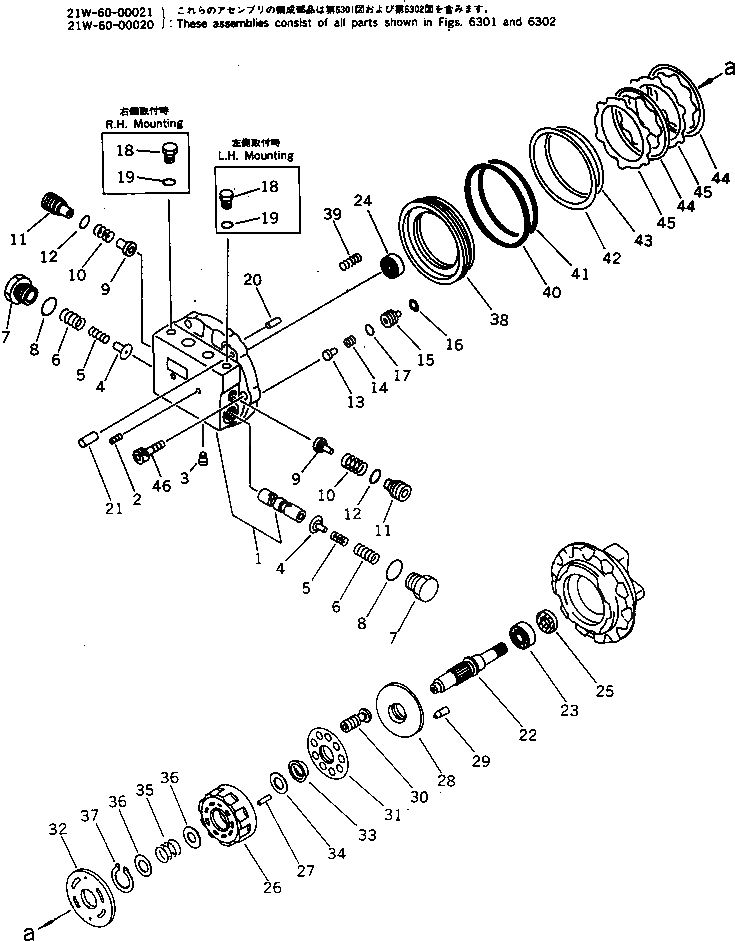

Запчасти Komatsu PC75UU-1 МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

21W-60-00021

TRAVEL MOTOR ASS'Y

|$1

21W-60-00020

TRAVEL MOTOR ASS'Y

1

TZ880A210100-A

FLANGE KIT

2

TZGM1-8

PLUG

3

TZMB700-050

PLUG

4

TZ861A2052-00

STOPPER,SPRING

5

TZ880A2057-00

SPRING

6

TZ860A2056-00

SPRING

7

TZ860A2051-00

PLUG

8

TZJB2401-P26-9

O-RING (KIT)

9

TZ860A2054-01

VALVE

10

TZ860A2055-01

SPRING

11

TZ860A2053-01

PLUG

12

07000-12016

O-RING (KIT)

13

TZ860A2019-00

VALVE

14

TZ860A2020-01

SPRING

15

TZ860A2018-00

SEAT,VALVE

16

TZ100A2022-00

RING

17

07000-11009

O-RING (KIT)

18

TZ100A2021-00

PLUG

19

07002-02034

O-RING (KIT)

10

TZJB1354-4-10

PIN

21

TZJB1354-8-25

PIN

22

TZ910A2002-00A

SHAFT

22

TZ910A2002-00

SHAFT

23

TZ880A2029-00

BEARING,BALL

24

06000-06203

BEARING,BALL

25

TZ15Z-22-42-10

SEAL,OIL (KIT)

26

TZ880A2004-00

BLOCK,CYLINDER

27

TZJB150625-168

ROLLER,NEEDLE

28

TZ850A200301-G

PLATE,SWASH

29

TZ800A2017-00

PIN

30

TZ860A2105-01

PISTON KIT (9 PIS)

31

TZ850A2007-01

PLATE,RETAINER

32

TZ860A2009-01

PLATE,TIMING

33

TZ880A2008-00

BALL,THRUST

34

TZ880A2011-00

WASHER (11 KINDS)

35

TZ880A2014-00

SPRING

36

TZ880A2010-00

WASHER

37

TZIRTW-42

RING,SNAP

38

TZ880A2012-00

PISTON

39

TZ880A2013-00

SPRING

40

07000-12140

O-RING (KIT)

41

TZJW1516-G28-9

O-RING (KIT)

42

TZSUN-2BG140

RING,BACK-UP

43

TZSUN-2WG28

RING,BACK-UP

44

TZ800A2015-00

PLATE

45

TZ800A2016-00

PLATE

46

01252-31030

BOLT

K

TZ881A9000-00

SEAL KIT,TRAVEL MOTOR
