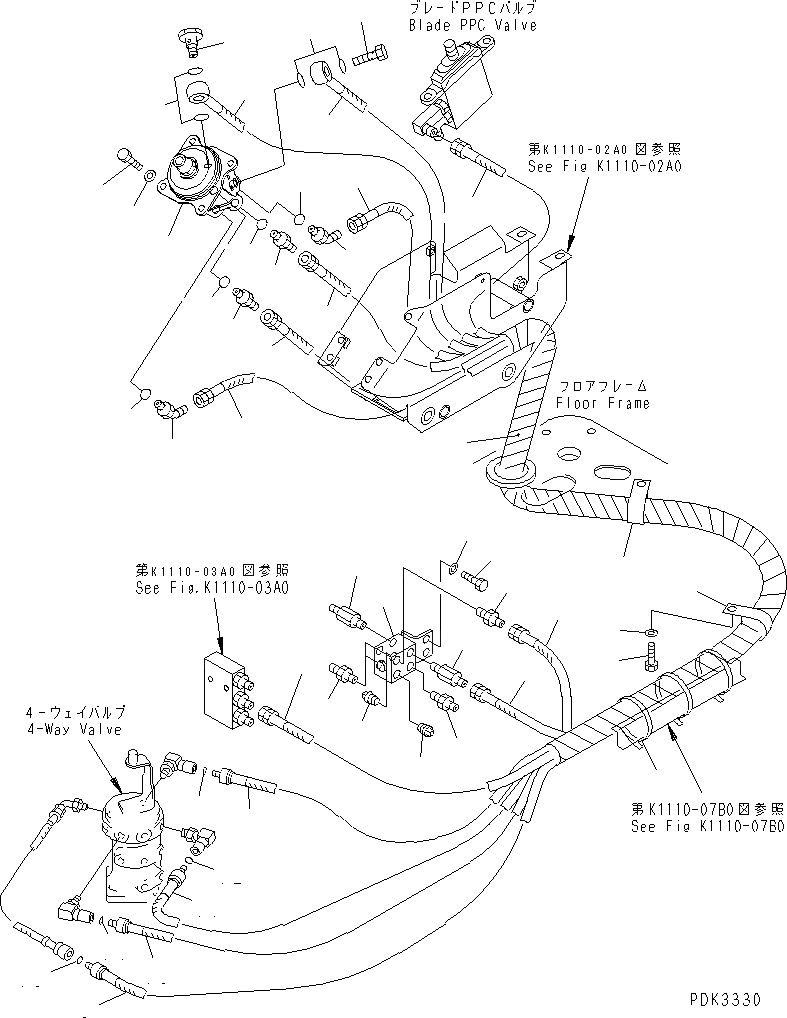

Запчасти Komatsu PC75US-3 ОСНОВН. КОНСТРУКЦИЯ (ТРУБЫ¤ ПРАВ.) (MULTIPLE PATTERN УПРАВЛ-Е) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01661

VALVE ASS'Y,(SEE FIG.Y1670-11A0)

|1

702-16-01660

VALVE ASS'Y,(SEE FIG.Y1670-11A0)

2

01010-80820

BOLT

3

01643-30823

WASHER

4

203-62-32450

COVER

5

21W-62-32830

HOSE¤ 2300MM,YELLOW-RED

6

21W-62-32840

HOSE¤ 1900MM,BLACK-BLUE

7

20U-62-23910

HOSE¤ 2010MM,BLACK

8

20U-62-22190

O-RING

9

20U-62-23920

HOSE¤ 1975MM,YELLOW

10

20U-62-22190

O-RING

11

20U-62-23930

HOSE¤ 2030MM,RED

12

20U-62-22190

O-RING

13

20U-62-23930

HOSE¤ 2030MM,BLUE

14

20U-62-22190

O-RING

15

21W-62-32650

HOSE¤ 1900MM,BLUE-BLACK-BLUE

16

702-16-53240

PLUG

17

20Y-62-16170

BOLT,EYE

18

07000-12018

O-RING

19

07000-12015

O-RING

20

07230-20210

UNION

21

07236-10210

ELBOW

22

07002-11423

O-RING

23

155-61-15350

CLIP

24

01010-81020

BOLT

25

01643-31032

WASHER

26

08034-00536

BAND

27

21Y-62-11151

PLATE

28

01010-81025

BOLT

29

01643-31032

WASHER

30

07238-10210

CONNECTOR

31

418-878-1480

NIPPLE

32

07042-70211

PLUG
